Biological wastewater treatment plant

physico-chemicalmobile

Overview
The BioUnit is a railway bioreactor toilet cleaning and disposal system designed for efficient, environmentally conscious cleaning of on-board bioreactor wastewater treatment systems. It supports mechanical, chemical and thermal cleaning and is available in mobile or stationary configurations to meet operational requirements.

Key benefits

• Designed specifically for cleaning on-board bioreactor wastewater treatment systems
• Fully automated operation with multiple service programs
• Integrated descaling for bioreactor collecting tanks
• Available in mobile and stationary configurations adapted to customer requirements

How bioreactor cleaning works
Bioreactors use biological processes to break down organic waste. Cleaning combines mechanical high-pressure flushing, chemical treatment when required and thermal disinfection. The BioUnit facilitates solids separation, biological reduction stages and final disinfection in line with bioreactor operation.

Models

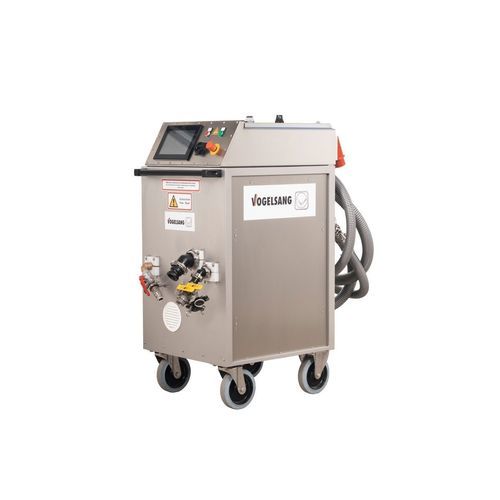

• BioUnit SMA — Compact, connectable to existing vacuum supply; stainless steel housing; mobile on 200 mm swivel and fixed castors; 200 bar high-pressure pump; flow and pressure sensors; quick coupling connections; 7" color touch panel.
• BioUnit MID — Includes pump on board: stainless steel housing; mobile on 200 mm swivel and fixed castors; 200 bar high-pressure pump; flow and pressure sensors; quick coupling connections; 7" color touch panel; integrated rotary lobe pump (without frequency converter) for vacuum wastewater disposal.
• BioUnit BIG — All-in-one: mechanical and chemical cleaning; built-in tanks; 200 bar high-pressure pump; flow and pressure sensors; quick coupling connections; 10" color touch panel; integrated rotary lobe pump with frequency converter for vacuum wastewater disposal; 2,000 l GRP wastewater intermediate storage tank.
• BioUnit S — Stationary solution for medium to large rail treatment facilities and workshops; multi-point centralized facilities for wastewater treatment and supply equipment for operating resources such as cleaning chemicals.

Features

• Optional activated carbon foul air filters for odour control
• QuickService design for rotary lobe pumps to simplify maintenance and reduce downtime
• Integrated descaling devices for bioreactor collecting tanks
• Available as stationary or mobile systems for rail, bus and ship applications; suitable for indoor and outdoor installation

Options

• Automation: preselection of filling volume, automatic switch-off on vacuum extraction stations, remote maintenance access, automated operating data acquisition to optimise efficiency and resource use
• Heating: optional electric heating elements for frost protection and reliable outdoor operation at low temperatures
• Data acquisition: optional system to record, store and analyse operating parameters such as filling and rinsing cycles

Technical specifications

• High-pressure pump: 200 bar (standard on SMA/MID/BIG)
• Flow and pressure sensors (monitoring)
• Quick coupling connections for rapid hose and tool changes
• Operator interface: 7" color touch panel (SMA/MID), 10" color touch panel (BIG)
• Housing: stainless steel (mobile units)
• Mobility: 200 mm swivel and fixed castors (mobile versions)
• Vacuum wastewater disposal: connectable to existing vacuum supply (SMA) or integrated rotary lobe pump (MID: without frequency converter; BIG: with frequency converter)
• Wastewater storage (BIG): 2,000 l GRP intermediate storage tank
• Integrated descaling equipment for bioreactor collecting tanks
• Optional activated carbon foul air filters
• Optional electric heating for frost protection
• Optional data acquisition and remote maintenance features
