Forklift truck emptying system MobileUnit

mobilefor liquids

Overview
Vogelsang MobileUnit M-series are mobile wastewater disposal systems designed for flexible, location‑independent use in rail applications (depots, sidings, service yards and on‑site servicing). Variants cover hand carts, pedestrian trolleys, trailer‑mounted skids and self‑propelled platform trucks to suit different operational and access conditions.

Benefits

• Multiple transport configurations to match depot and trackside access constraints
• High usable tank capacity in compact footprints
• Vogelsang rotary lobe pump as combined vacuum extraction and pressure discharge unit for flexible on‑site operation
• Lightweight plastic wastewater tanks for ease of handling and corrosion resistance
• Simple start‑up and user controls for rapid deployment

Models

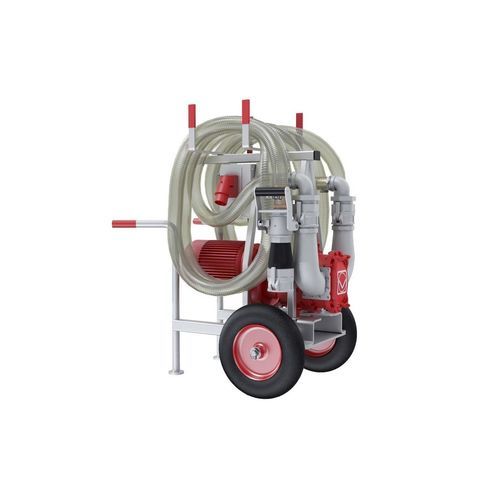

• MobileUnit M10 — Mobile pump unit on a hand‑cart base. Compact assembly with a VX100 series rotary lobe pump and electric drive mounted on a robust trolley. Designed to empty onboard toilet tanks by vacuum extraction and to pump wastewater to a disposal point. Suction and pressure hoses with a suitable hose holder can be supplied.
• MobileUnit M20 — Lightweight pump and tank assembly on a 4‑wheel pedestrian trolley. Compact wastewater transport tank for manual maneuvering in confined depot areas. Pump available with electric drive or combustion engine.
• MobileUnit M — Standard skid version: preassembled tank and pump skid for installation on carrier vehicles. Includes base frame, control unit and accessories. Lifting pockets allow placement by forklift. Multiple tank sizes and equipment variants are available depending on the carrier vehicle.
• MobileUnit M30 — Disposal unit mounted on heavy‑duty industrial trailer. Complete tank skid fitted to industrial trailers; variants include turntable trailers, 2‑axle turntable steering and interchangeable drawbars for high maneuverability. Available with different tank sizes.
• MobileUnit M50 — Self‑propelled vehicle with complete tank skid on a battery‑powered industrial platform truck. Variants include electric platform trucks with driver cabs or pedestrian‑controlled platform trucks with tiller steering. Zero‑emission drive enables indoor and outdoor use; vehicle battery can power the disposal unit independently of mains supply.

Features

• Uses Vogelsang VX series rotary lobe pumps; QuickService design for simplified maintenance and reduced downtime
• Combined vacuum extraction and pressure discharge pump concept for versatile on‑site operation
• Lightweight plastic tanks in compact layouts to maximize capacity per footprint
• Preassembled tank and pump skids for direct installation on carrier vehicles (skid and trailer variants)

Options

• Foul‑air filters: activated carbon filters for odor control
• Heating: optional electric heating elements to allow safe operation at freezing temperatures and to protect equipment from frost
• Toilet reservoir rinsing: additional water tank with pump and hose accessories for rinsing onboard reservoir tanks

Technical specifications

• Pump type: rotary lobe pump (VX100 series referenced for M10; VX series for QuickService design)
• Drive options: electric drive; combustion engine available for selected models; battery‑powered drive for self‑propelled M50
• Operation modes: combined vacuum extraction and pressure discharge
• Transport/tank variants: hand cart (M10), 4‑wheel trolley (M20), skid (M), heavy‑duty trailer (M30), self‑propelled vehicle (M50)
• Tank material: lightweight plastic wastewater transport tanks
• Installation: preassembled tank skid with control unit and accessories; forklift pockets for placement
• Optional accessories: suction and pressure hoses with hose holder; activated carbon foul‑air filters; electric heating elements; tank rinsing facility
