Overview

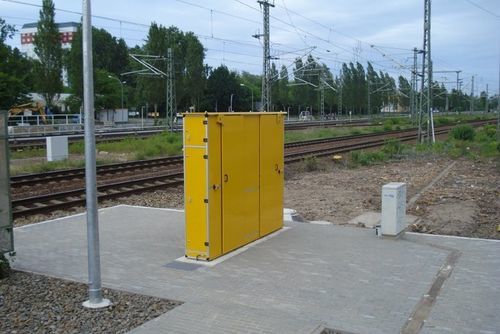

The Vogelsang CabinetUnit is a compact service station for hygienic drinking-water supply and wastewater disposal, engineered for outdoor installation in rail depots, workshops and similar industrial sites. Available as a stand‑alone CabinetUnit SP with integrated vacuum pump or as a CabinetUnit MP satellite module connected to a central vacuum pumping station. The unit is mounted in an insulated, weatherproof cabinet and provides protected, two-sided access for hose handling and equipment.

Key characteristics

• Compact cabinet station for drinking-water supply and wastewater disposal
• Two main variants: CabinetUnit SP (stand‑alone, integrated pump) and CabinetUnit MP (satellite for central vacuum systems)
• Insulated, weatherproof cabinet suitable for outdoor installation
• Hygienically separated compartments for potable water and wastewater connections
• Dual‑side access via large doors to allow hose handling from either side of the aisle
• Protected internal storage for supply and disposal hoses

Benefits / Features (summary)

• Can serve as stand‑alone service point or as satellite module in centralized vacuum systems
• Weatherproof, insulated enclosure protects equipment and enables outdoor placement
• Organised hose management with protected storage reduces wear and simplifies operation
• Automatic hygienic flushing of the drinking-water filling device ensures compliance with hygiene requirements
• Two-sided access improves operator ergonomics and workflow in depot environments

Models

• CabinetUnit SP — Stand‑alone cabinet with integrated vacuum pump; recommended for small depots or workshops; configurable with optional interior units (sink compartment, water heater, detergent dispenser, storage).
• CabinetUnit MP — Satellite/multiple‑station module for connection to a central vacuum pumping station in medium to large rail systems; can be combined with interior cleaning modules.

Features (detailed)

• Easy maintenance: Designed for quick service and repair (QuickService concept) to minimize downtime.
• Expansion options: Modular design allows addition of storage modules, sink/water supply compartments and other internal equipment.
• Protective cabinet enclosure: All essential fittings and connections housed to resist external influences and extreme weather.
• Couplings: Multiple coupling options for potable and wastewater; drinking-water coupling complies with applicable railway drinking-water quality standards.
• Installation: Supplied installation frame for secure mounting in concrete; optional adapter frames for height adjustment to match existing working levels.

Options (examples)

• Workplace luminaire: Rail-approved post-top lighting for safe operations.
• Automation: Preselection of filling volumes, automatic shut-off during vacuum extraction, remote maintenance access and automated operating-data capture.
• Authorization: Local user authorization modules; integration with central operating-data systems.
• Heating: Optional electric heating to protect components in freezing conditions.
• Data acquisition & monitoring: Systems to record and analyze operating parameters (filling/rinsing cycles, flow monitoring).
• EasyConnect Plus: Patented drip-free suction coupling for hygienic disposal; compact and ergonomic with integrated hose swivel.
• External floor drainage: Heated embedded drainage for heavy receptacles with walk-on grate cover.
• Remote control: Radio remote control options for valve operation or hose retraction.

Technical specifications

• Product family / model name: Vogelsang CabinetUnit
• Variants: SP (stand‑alone with integrated vacuum pump) and MP (satellite for central vacuum pumping)
• Cabinet: Insulated, weatherproof housing for outdoor operation
• Access: Doors on both sides for hose and equipment handling
• Hose management: Internal protected storage for supply and disposal hoses
• Hygiene: Separate compartments and automatic hygienic flushing for drinking-water filling device
• Couplings: Drinking-water coupling compliant with railway potable-water requirements; various wastewater couplings available
• Installation: Installation frame supplied for setting in concrete; optional adapter frames for height leveling
• Optional equipment: Sink compartment, storage modules, water heater, detergent dispenser, heating elements, data acquisition, flow monitoring, authorization systems, remote control, EasyConnect Plus coupling
