Rotary lobe pumping unit

for potable waterelectricself-priming

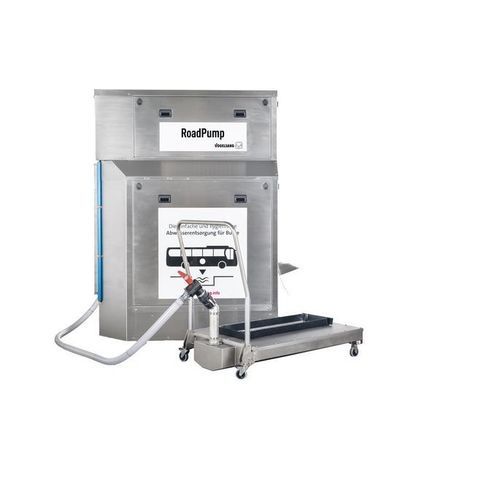

Product overview
The RoadPump is a supply and disposal station engineered for washroom and toilet wastewater from coaches. It disposes wastewater hygienically into a connected sewer or collection tank while optionally supplying flushing and drinking water. The system is designed for bus stations, depots, rest stops, service stations and ferry ports.

Key benefits

• Hygienic, fast wastewater extraction and disposal for coaches
• Integrated flushing and fresh/drinking water supply (configurable)
• High availability with easy on-site maintenance
• Dry-run protection and high tolerance to common foreign matter
• Driver- or customer-operated handling with optional self-service and payment solutions

Models

• RoadPump Eco: Mobile, cost-effective solution with a Vogelsang VX rotary lobe pump on a mobile trolley; connects to collection systems (compatible with CollectingMax or BusPlug).
• RoadPump Easy: Stationary, weatherproof unit for private operators; allows emptying via CollectingMax trolley or BusPlug and supports filling/flushing with service water; driver-friendly.
• RoadPump Plus: Premium stationary system in a heated, weatherproof housing for service stations, public bus terminals and ferry ports; features hygienic drinking-water filling, electromechanical part locks to prevent vandalism/theft, freeze protection and configurable payment/authorization for self-service operation.

Features and collection methods

• BusPlug: odorless vacuum suction coupling for direct extraction from coach tanks; closed system prevents odors and can extract larger foreign matter.
• CollectingMax: large drip-pan trolley positioned under the bus outlet for quick, splash-free collection and transfer; suited for smaller depots and rest stops.
• Built-in pump: Vogelsang VX rotary lobe pump technology for compact design, simple maintenance and robust handling of toilet paper and common contaminants.
• Options: automatic tank flushing (in combination with BusPlug) and hygienic drinking-water filling (RoadPump Plus can be configured to meet German Federal Railway Authority (EBA) drinking-water requirements).

Applications

• Bus stations and depots
• Highway service stations and public rest stops
• Ferry ports and marinas
• Any facility requiring controlled hygienic wastewater disposal and optional coach drinking-water refill

Technical data / specifications

• Commercial designation: RoadPump
• Manufacturer / Brand: Vogelsang
• Available models: RoadPump Eco (mobile), RoadPump Easy (stationary), RoadPump Plus (premium stationary)
• Pump technology: Vogelsang VX rotary lobe pump (core component)
• Collection interfaces: BusPlug (vacuum suction coupling), CollectingMax (drip-pan trolley)
• Operation modes: manual by driver/station staff; optional self-service and payment/authorization systems
• Housing: weatherproof housings for stationary variants; RoadPump Plus optionally heated for freeze protection
• Water supply: flushing water and, for RoadPump Plus, hygienic drinking-water filling (EBA-compliant when configured)
• Maintenance: designed for easy on-site maintenance and high availability
• Robustness: tolerant to foreign matter and resistant to dry running
