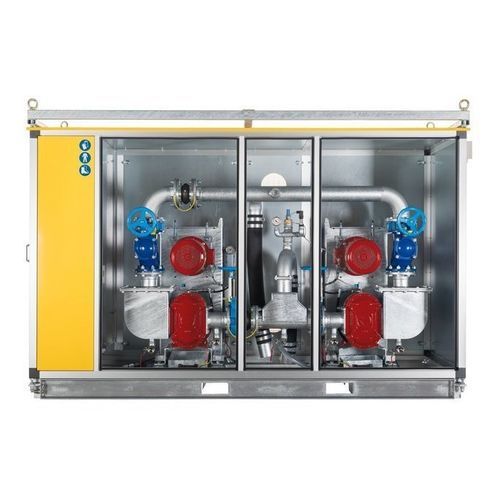

Modular vacuum pumping unit VacUnit

rotary transfercompactautomatic

Overview
The Vogelsang VacUnit is a compact vacuum pumping station for grey and black water collection in vacuum wastewater systems. Designed as a centralised unit, the VacUnit maintains the vacuum required for effluent transport and enables direct inline discharge of mixed air/liquid phases into downstream wastewater infrastructure. Integrated Vogelsang VX-series rotary-lobe pumps deliver multi-phase, self-priming operation without the need for separate vacuum tanks.

Benefits

• Compact footprint for constrained installation sites
• High availability via duty/standby pump configuration (DP)
• Simplified system design without separate vacuum collection tanks
• Reduced maintenance scope thanks to QuickService pump concept
• Inline conveyance of air and liquids in a single operation
• Insensitive to foreign matter and clogging; tolerant to dry running

Basics / Operating principle
The VacUnit maintains the vacuum level required for transport of wastewater in vacuum sewer systems. Its multi-phase pumping concept conveys air and liquid simultaneously and discharges them inline into downstream wastewater systems, eliminating the need for additional vacuum collection tanks and separate vacuum/sewage pumps.

Models

• VacUnit DP (double pump station): Dual-pump configuration with redundant units and intelligent pump control for continuous operation and handling of peak loads.
• VacUnit SP (single pump station): Single-pump configuration using a Vogelsang VX-series rotary-lobe pump for reliable, quiet operation and simplified maintenance.

Features

• Vogelsang VX-series rotary-lobe pumps with QuickService design for fast maintenance
• Duty/standby redundancy in DP versions for increased uptime
• Multi-phase pumping enabling inline discharge of liquid and air

Options

• Electric heating elements for frost protection and safe outdoor use at low temperatures
• Operating data acquisition, online monitoring and remote maintenance via control interfaces; VEBSys web portal available for remote access and support
• Containerised walk-in machine room (20' or 40') with space for additional equipment and customised layouts
• Weatherproof and soundproof enclosure with aluminium profile frame, insulated sandwich panels, ventilation grilles and service access panels

Downloads & Documentation (titles only)

• Data sheet: VacUnit DP - Double pumping station
• ePaper: VacUnit DP - Double pumping station
• Data sheet: VacUnit SP - Single pump station
• ePaper: VacUnit SP - Single pump station
• Brochure: User-friendly service stations for train care maintenance facilities

More information
The VacUnit is intended for vacuum wastewater collection systems where space is limited and reliable vacuum generation and wastewater discharge are required. Its design prioritises availability, straightforward maintenance and resistance to clogging and foreign matter, making it suitable for railway maintenance facilities and similar service sites.

Technical specifications

• Product family / model name: VacUnit (DP and SP variants)
• Pump type: Vogelsang VX-series rotary-lobe pumps (multi-phase capable, self-priming, tolerant to dry running)
• System concept: Multi-phase pumping — conveys liquids and air in the same operation; inline discharge into downstream wastewater system
• Design highlights: Compact footprint, duty/standby redundancy (DP), QuickService maintenance concept
• Options: Electric heating, remote monitoring/VEBSys, containerised walk-in machine room, weatherproof & soundproof protective cabinet
• Application: Vacuum wastewater collection and disposal systems (grey and black water) for railway and similar service facilities
