Rotary lobe pump

wastewaterfor effluentswith electric motor

Overview

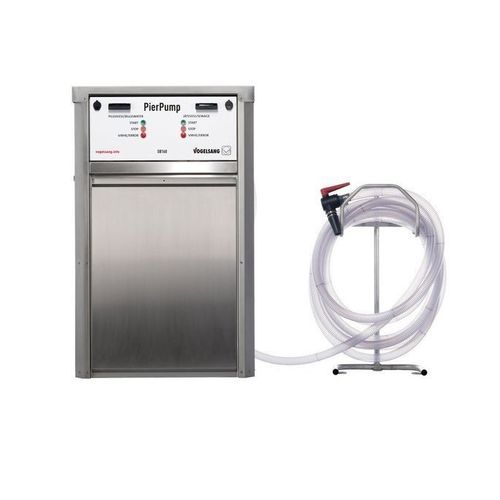

PierPump is a hygienic, user-friendly and compact wastewater and bilge water disposal system for marinas, boat harbours and yachts. It is designed as a closed system to avoid unpleasant odours and is simple to operate like a fuel pump. The system is suitable for short stops and regular marina use and provides fast emptying of onboard wastewater tanks.

Key benefits

• Hygienic and fast wastewater disposal system for boats
• High availability of the system
• Insensitive to dry running and foreign matter
• Self-service operation

How it works / Practical details
The PierPump is compact in design so it does not require much berth space. Operators connect the extraction hose to the boat’s tank and start the pump; emptying typically takes less than 5 minutes. The pump is a fully enclosed system, preventing odours from escaping during use. Vogelsang rotary lobe pumps used in PierPump models are protected against dry running and have strong suction properties. The QuickService design concept simplifies maintenance and shortens downtime. Optional electric heating is available for safe outdoor operation in freezing temperatures.

Models

• PierPump Easy: Cost-effective disposal solution for price-conscious port operators; reduced equipment while maintaining comparable pump performance.
• PierPump S160 / B160: Disposal system for wastewater or bilge water; offers a flow rate up to 12 m3/h at a working pressure range of -0.6 to 2 bar.
• PierPump SB160: Combined system for both wastewater and bilge water in a single unit; designed to extract faeces and bilge water reliably.

Features

• Easy maintenance (QuickService design) for rapid service and minimal downtime
• Compact footprint compared with comparable solutions
• Available as mobile or stationary versions (trolley/mobile carrier or permanently installed)
• Fully enclosed system to prevent odours

Options

• Electric heating elements for frost protection and winter operation
• Operating hour meter (optional)
• Various payment systems (optional) for self-service operation
• Suction lance for vacuum extraction of bilge water (on some models)
• Timer relay control for precise setting of usage time

Application areas
PierPump is intended for marinas, yacht harbours and ports where wastewater and bilge water disposal is required. Systems are available as single units for individual berths, mobile trolley units for flexible use, or multi-station solutions with a central pumping station connected to several suction points for larger marinas.

Technical specifications

• Model name: PierPump (variants: Easy, S160/B160, SB160)
• Flow rate (S160/B160): up to 12 m3/h
• Working pressure range (S160/B160): -0.6 to 2 bar
• Pump technology: rotary lobe pump with dry-run protection and high suction capability
• Design concept: QuickService for simplified maintenance
• Installation: stationary or mobile (trolley/carrier)
• Optional features: electric heating, operating hour meter, payment systems, suction lance for bilge water, timer relay control
• System type: fully enclosed disposal system (closed system, odour-free)
