Double-diaphragm pump S15
waterfor chemicalsair

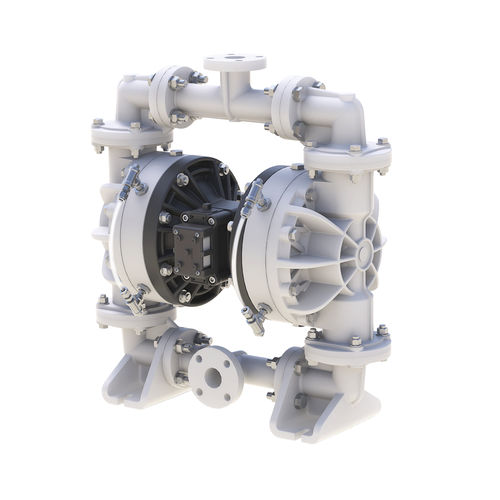

Double-diaphragm pump - S15  - WARREN RUPP - water / for chemicals / air
Double-diaphragm pump - S15  - WARREN RUPP - water / for chemicals / air
Double-diaphragm pump - S15  - WARREN RUPP - water / for chemicals / air - image - 2
Double-diaphragm pump - S15  - WARREN RUPP - water / for chemicals / air - image - 3
Double-diaphragm pump - S15  - WARREN RUPP - water / for chemicals / air - image - 4
Add to favorites
Compare this product

Characteristics

Technology
double-diaphragm
Fluid
water, for chemicals, air
Mobility
stationary
Domain
industrial, chemical
Applications
discharge, handling, suction, recovery, replacement
Material
stainless steel, cast iron, aluminum, PTFE, polypropylene, PVDF
Fluid specification
for hazardous fluids
Other characteristics
non-metal
Flow

Max.: 100 us gal/min
(378.54118 l/min)

Min.: 0 us gal/min
(0 l/min)

Pressure

7 bar
(101.526 psi)

Head

70 m
(229'07" )

Length

7,002 mm
(276 in)

Width

381 mm
(15 in)

Height

730 mm
(28.74 in)

Weight

Max.: 88 kg
(194.01 lb)

Min.: 37 kg
(81.57 lb)

Description

For more than 55 years, manufacturers across multiple industries that involve hazardous materials have trusted SANDPIPER to protect people, equipment, the environment and the material being pumped. The SANDPIPER 1½" S15 Non-Metallic AODD Pump provides unsurpassed fluid containment in the event a diaphragm is breached. This leak-free pump is designed to be driven by compressed air or nitrogen. Why Use Containment-Duty Pumps? Environmental concerns: When fluids (like those listed below) escape to the environment, significant time and effort is required on clean up and material recovery. Additionally, the costs of downtime, lost production, manpower, equipment replacement, disposal fees and fines can be excessive. Preventing leaks when handling these substances provides a more efficient operation and avoids the damaging effects of environmental and human exposure to these toxic fluids. Paints, inks, and coatings Adhesives and resins Chemicals and petrochemicals Oils and hydrocarbons Acids, caustics and corrosives Plastics and polymers Contaminated water and wastewater Pesticides and herbicides Fertilizers Preservatives Mercury Phthalates High cost of lost fluid: When fluids (like those listed below) escape to the environment, the cost of losing them is significant. Lost fluid means lost profit. Drugs and pharmaceuticals Foods Cyanotic-based paints Precious metal-based fluids Cosmetics Perfumes Printer inks Beer and alcohol Blood Creams and lotions
