Adhesive melter

waxfor the food industrystainless steel

Overview

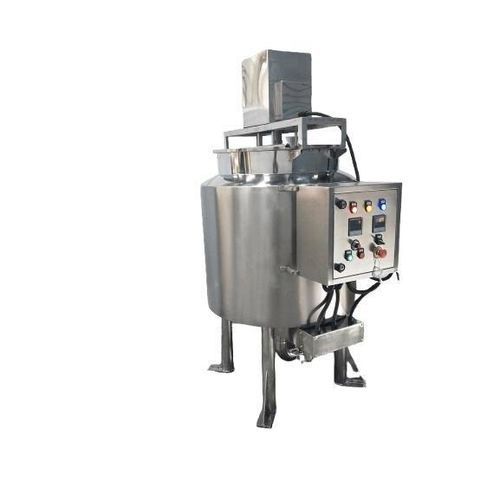

The Wax Melting Tank melts and maintains wax at precise temperatures using a water-jacketed heating system. It provides lump-free, homogeneous melt for candle, soap, adhesive and industrial applications. Digital controls, integrated mixing and built-in safety features support continuous production while optimizing energy use and easing maintenance.

Available models and capacities

• Batch capacities from 20 kg to 1000 kg; multiple model sizes available to suit small-scale and large-scale production; custom configurations possible on request.

Key Features

• Efficient heating with water-jacketed design for even temperature distribution.
• Precise digital temperature control with ±1°C accuracy to prevent overheating.
• Integrated automatic mixing for uniform consistency.
• Stainless steel construction (SS316 / SS304) for hygiene and durability.
• Insulated jacket to improve thermal efficiency and reduce energy consumption.
• User-friendly controls and clear digital display for straightforward operation.
• Safety mechanisms including over-temperature protection and secure drive system.

Specifications

• Capacity: 20 kg – 1000 kg per batch.
• Material: Stainless steel SS316 / SS304.
• Heating system: Water-jacketed heating.
• Temperature control: Digital, ±1°C accuracy.
• Melt rate: Up to 500 kg/hr depending on model.
• Power requirement: 2.5 kW – 10 kW.
• Drive type: Top drive; motor 1/4 HP – 10 HP.

Applications

• Candle making
• Soap crafting
• Art and sculpture
• Industrial coatings
• Food industry
• Adhesives and sealants

Technical specifications

• Capacity range: 20–1000 kg per batch.
• Material grades: SS316 / SS304 stainless steel.
• Heating: Water-jacketed system for precise temperature control.
• Temperature accuracy: ±1°C.
• Max melt rate: Up to 500 kg/hr (model dependent).
• Electrical: 2.5 kW–10 kW; motor options 1/4 HP–10 HP.
