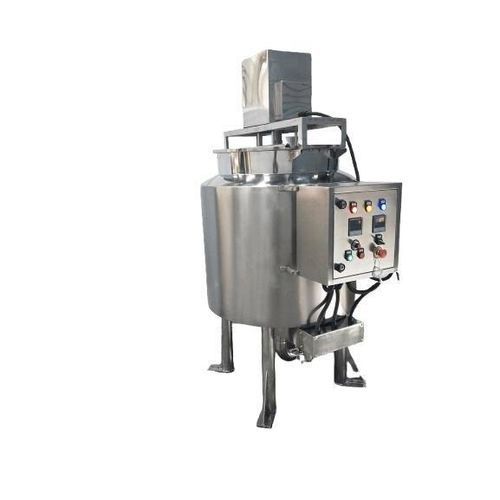

Fat melting machine

Overview
The Fat Melting Tank melts and maintains fats at controlled temperatures for lump-free, homogeneous output. It is engineered for precise temperature management, easy operation and maintenance, and suitability across small to large batch production in food, pharmaceutical, cosmetic and industrial processes.

Available models / Capacities

• Models / Options: available in batch sizes from 25 kg up to 1000 kg (as listed on the page).
• Specification capacity note: specification range covers 20 kg to 1000 kg batch capacity.

Specifications (summary provided on the page)

• Capacity: 20 kg – 1000 kg batch capacity.
• Material: Stainless steel SS316 / SS304.
• Heating System: Water-jacketed heating for uniform, controlled heating.
• Temperature Control: Digital control with ±1°C accuracy.
• Melt Rate: Up to 500 kg/hr depending on model.
• Power Requirement: 2.5 kW – 10 kW depending on model.
• Drive Type: Top drive with motor options from 1/4 HP to 10 HP.

Key Features

• Controlled heating: Maintains target temperature to avoid overheating and ensure uniform texture.
• Precision control: Digital temperature regulation for repeatable results.
• Range of capacities: Models suited for pilot-scale to large-scale production.
• Stainless steel construction: SS304/SS316 for hygiene and compatibility with food, cosmetic and pharmaceutical processes.
• Insulated jacket: Reduces heat loss and supports stable temperature maintenance.
• Integrated mixing: Automatic agitation to keep melted fat uniform and prevent lumps.
• Safety and compliance: Includes safety devices aligned with industry standards.

Applications

• Food industry (margarine, chocolate, confectionery)
• Pharmaceutical formulations
• Cosmetic production (creams, balms)
• Soap and detergent manufacturing
• Industrial fat/oil processing

Technical specifications

• Capacity: 20 kg – 1000 kg per batch (page lists models 25 kg – 1000 kg).
• Material: Stainless steel SS316 / SS304.
• Heating: Water-jacketed system for controlled heating.
• Temperature Control: Digital, ±1°C accuracy.
• Melt Rate: Up to 500 kg/hr (model dependent).
• Power: 2.5 kW – 10 kW (model dependent).
• Drive: Top drive; motor 1/4 HP – 10 HP.
