Pinch valve WL 3050

electricelectrically-actuatedregulating

Overview

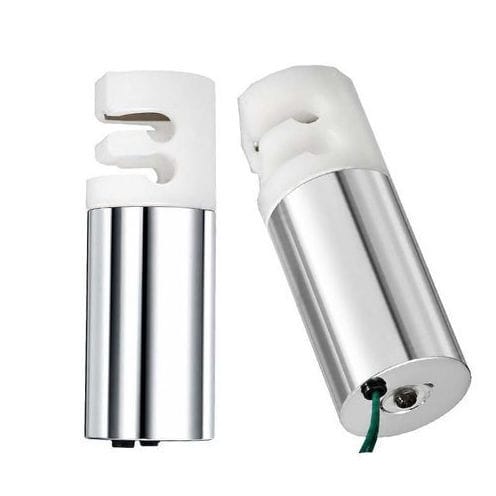

The WL3050 double pinch valve is a tube-control valve that regulates liquid or air flow by mechanically compressing a flexible tube. The fluid never contacts the valve mechanism, ensuring contamination-free operation. Its compact design and stable sealing make it suitable for medical, laboratory, pharmaceutical, chemical and industrial automation applications.

How it works

• Place the tubing inside the valve body so the medium flows only within the tube.
• When the actuator is powered, pinch arms compress the tube from both sides to seal and stop flow.
• When power is removed the tube is released and returns to shape, allowing flow to resume.
• The double-side pinch increases sealing force, reduces tube deformation and provides more stable flow control than single-side designs.

Key features

• No contact between liquid and valve mechanism (fluid contacts tubing only).
• Easy maintenance with simple tubing replacement.
• Low dead volume and strong leakproof performance.
• Compact installation size and long service life.
• Compatible with various tubing materials: silicone, PVC, PTFE and medical-grade tubing.
• Standard and customizable options for voltage, stroke, force and mounting.

Applications

• Medical devices: blood analyzers, dialysis equipment, diagnostic instruments, infusion systems, laboratory automation.
• Laboratory equipment: sampling systems, chemical analysis instruments, test setups.
• Pharmaceutical systems: hygienic liquid transfer with disposable tubing.
• Food & beverage processing: hygienic filling and handling.
• Chemical processing: handling aggressive media by selecting compatible tubing.
• Industrial automation: controlled dispensing, dosing, filling and liquid handling in automated production.

Advantages and limitations

• Advantages: zero contamination risk from valve internals, easy maintenance, high chemical compatibility, long cycle life, compact footprint, reduced leakage risk.
• Limitations: tubing is a wear item and requires periodic replacement; lower high-pressure tolerance compared with metal valves; flow capacity determined by tubing ID; certain OEM applications may require customization.

Datasheet (key parameters)

• Brand: Weilong
• Model Number: WL3050
• Rated Voltage (V): DC 12V or 24V
• Rated Power (W): 4 W
• Work Mode: Air or liquid control valve
• Working Pressure (MPa): 0.1 MPa
• Air Flow Rate: 0–0.5 L/min
• Reset Time(s): 1 s ON, 1 s OFF
• Service Life: ~200,000 cycles
• Certification: CE, ROHS, ISO9001
• Pipe Gate: Outside dia. 8 mm, inside dia. 6 mm
• Type: Single tube, normally open
• Install Style: Screw
• Dimension Tolerance: ±0.1 mm
• Water-proof: None
• Insulation Class: B
• Hi-Pot Test: AC 600 V 50/60 Hz 2 s
• Non-excitation Holding Force: 0
• Working Temperature: -10°C to 100°C
• Duty Cycle: 1–100%
• Thread Depth: /
• Payment Term: TT or LC at sight
• Sample Order: Yes
• Warranty: 1 year
• MOQ: 1000 pcs
• Supply Ability: 5000 pcs per week
• Delivery Time: 30 days
• Port of Loading: Shenzhen

Troubleshooting (high-level)

• Valve fails to close: check pinch force, correct tubing size/hardness, actuator voltage and power supply.
• Fluid leakage after closing: inspect tubing for distortion or aging; adjust valve position; reduce system pressure if needed.
• Slow response time: verify supply voltage, reduce mechanical friction and optimize actuator/spring design.
• Overheating: confirm duty cycle, reduce continuous holding time or improve heat dissipation.
• Short tube life: optimize pinch force, select more resistant tubing and perform cycle testing.

Technical specifications

• Brand: Weilong
• Model: WL3050
• Voltage: DC 12V or 24V
• Power: 4 W
• Operating media: air or liquid (via tubing)
• Working pressure: 0.1 MPa
• Tube bore: outside 8 mm / inside 6 mm
• Service life: ~200,000 cycles
• Certifications: CE, ROHS, ISO9001
• Temperature range: -10°C to 100°C
• Warranty: 1 year
• MOQ & supply: min order 1000 pcs; capacity ~5000 pcs/week
