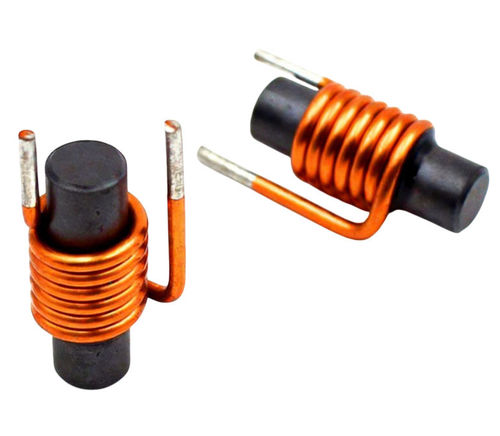

Filter inductor WL0625

RFmagneticferrite core

Overview
The WL0625 ferrite core inductor delivers stable inductance across a wide range with low core losses and compact dimensions suitable for PCB-mounted power and filtering circuits. It stores energy during switching events and suppresses conducted noise in high-frequency applications, supporting reliable operation across typical industrial temperature ranges.

Construction and materials

• Core material: ferrite magnetic material for high permeability and low core losses
• Conductor: enameled copper wire with polyester insulation
• Construction types: radial and SMD variants available
• Mounting: PCB through-hole (radial) and surface-mount (SMD)

Shapes and customization

• Available shapes: toroidal, rod-type, drum core and other geometries
• Customizable parameters: inductance value, tolerance, rated current, DC resistance (DCR), mechanical dimensions and current handling
• Manufacturer services: OEM production and tailored designs for specific inductance, size and current requirements

Applications

• Switching power supplies and DC–DC converters (energy storage during switching)
• EMI/RFI filters and noise suppression networks
• Consumer electronics: TVs, laptops, mobile devices
• Industrial equipment: motor drives, automation controllers, power modules
• Automotive electronics: engine control units, lighting drivers, power distribution
• Communication equipment: routers, radio modules, network devices
• Renewable energy and charging systems: solar inverters, battery chargers

Advantages
High magnetic permeability enables compact designs with substantial inductance; low eddy-current losses improve efficiency at high switching frequencies; stable electrical properties and low EMI in properly selected configurations.

Disadvantages
Ferrite cores are mechanically brittle and may be damaged by impact; lower saturation flux density than some metal alloy cores can limit high-current performance without careful design.

Product Datasheet
Parameter Symbol Value Unit
Inductance L 1µH – 1000µH µH
Tolerance ±L ±10% / ±20% —
Rated Current Ir 0.1 – 5 A A
DC Resistance DCR 0.01 – 5 Ω Ω
Core Material Ferrite —
Operating Temp -40 to +125 °C °C

Mechanical Specifications

• Core type: ferrite core
• Construction: radial and SMD
• Wire: enameled copper with polyester coating
• Mounting: PCB

Notes on selection
Consider required inductance and tolerance, rated and saturation currents, DCR, operating frequency and ferrite grade, thermal performance, mounting constraints and environmental factors (vibration, humidity) for automotive or industrial applications.

Technical specifications

• Model: WL0625
• Inductance range: 1µH – 1000µH
• Tolerances available: ±10%, ±20%
• Rated current: 0.1 A – 5 A
• DC resistance (DCR): 0.01 Ω – 5 Ω
• Core material: ferrite
• Operating temperature range: -40 °C to +125 °C
• Core types and constructions: toroidal, rod-type, drum core; radial and SMD
• Wire and insulation: enameled copper with polyester coating
• Typical applications: switching power supplies, DC–DC converters, EMI filters, consumer and industrial electronics, automotive systems, communication equipment, solar and charging systems
