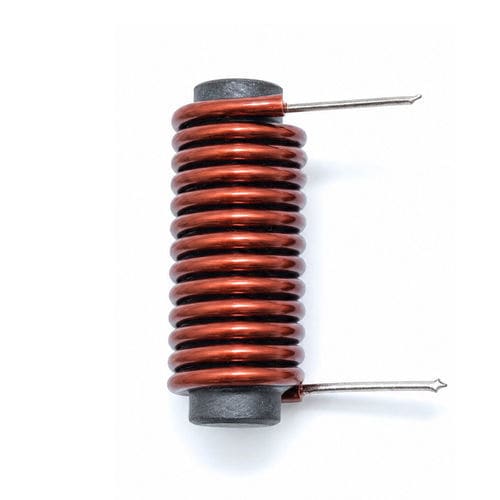

Ferrite inductor WL1230

ferrite corehigh-frequencylow-frequency

Overview
Rod-core ferrite coil WL1230 is an inductive component for reception, magnetic coupling and frequency applications. It uses a ferrite rod as the magnetic core and enameled copper winding to provide compact high inductance. Ferrite materials increase magnetic permeability to concentrate the magnetic field and improve signal behaviour.

Key points

• High magnetic efficiency and stable inductance
• Compact, lightweight construction
• Customizable ferrite material, winding, wire diameter, dimensions and electrical parameters
• Suitable for low and mid frequency bands with high Q-factor and low power consumption

Applications

• AM antennas and radio receivers
• RF and wireless communication devices
• RFID readers and identification systems
• Wireless sensors and IoT devices
• Smart meters and metering communication
• Automotive electronics (keyless entry, TPMS, control modules)
• Industrial sensors, measurement instruments and control systems
• Medical devices and other OEM electronics

Product Details (construction and options)
Item - Description
Ferrite Coil Inductor - Enameled copper wire
Wire Diameter - 0.3 mm (AWG options available)
Winding Type - Single-layer round or sectional winding
Core Material - Ferrite rod (MnZn or NiZn depending on frequency)
Footprint length - 30 mm
Encapsulation - Optional varnish, epoxy or coating
Mounting - Through-foot / custom

Electrical Specifications (typical)
Parameter - Description
Inductance Range - 0.1 µH – 100 µH (customizable)
Inductance Tolerance - ±2%, ±5%, ±10%
DC Resistance (DCR) - Custom
Q Factor - Specified per frequency range
Self-Resonant Frequency - Dependent on design and application
Operating Frequency - kHz to MHz range
Rated Current - Custom per design
Insulation Resistance - ≥100 MΩ

Performance and Design Notes
Rod-core ferrite coils improve magnetic coupling and reception sensitivity compared with air-core designs. Performance depends on ferrite composition, core size, number of turns, operating frequency and circuit matching. Appropriate material selection (MnZn for lower frequencies, NiZn for higher) and careful design ensure sensitivity, low losses and thermal stability.

Customization
Manufacturing supports tailored rod length, ferrite composition, wire gauge, number of turns, encapsulation and mounting to meet OEM or industrial requirements.

Technical specifications

• Model: WL1230 (rod-core ferrite coil)
• Core length (typical footprint): 30 mm
• Inductance range: 0.1 µH – 100 µH (customizable)
• Inductance tolerance options: ±2%, ±5%, ±10%
• Wire: enameled copper; typical diameter 0.3 mm (AWG options available)
• Winding: single-layer round or sectional
• Operating frequency: kHz to MHz
• Insulation resistance: ≥100 MΩ
• Encapsulation options: varnish, epoxy or other coatings
• Mounting: through-foot or custom mounting
• Ferrite materials: MnZn (low frequency) / NiZn (higher frequency)
