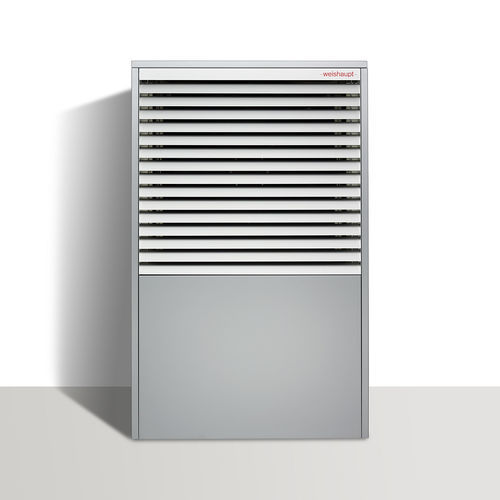

Air/water heat pump WAB series

propane (R290)hot waterlow-temperature

Overview
The Weishaupt Aeroblock® WAB air-to-water heat pump uses outdoor air energy for space heating and domestic hot water (DHW) production. Monobloc design groups all components into a single outdoor unit. Standard supply includes cooling function. Direct connection to heating circuit and DHW systems.

Key points

• High energy efficiency: from 1 kW of electricity the unit delivers between 4 and 5 kW of thermal energy.
• Modulating capacity: the unit adapts to the thermal demand to avoid full-load cycling, improving efficiency and reducing noise.
• Low-temperature operation: operable down to −22 °C outdoor temperature.
• Natural refrigerant: R290 (propane) with GWP ≈ 0.02.
• Maximum supply temperature: 70 °C (enables DHW comfort and renovation of existing buildings).
• Cooling function: can be used for cooling (underfloor cooling or fan coil units depending on variant).
• Acoustic comfort: optimized compressors and fans, vibration dampers and modulation mode reduce noise emissions.
• Complete solution possible: integration with Weishaupt multifunction storage (WKS) including hydraulic connections and control.
• Materials and quality: aluminium, stainless steel and premium coatings for durability.

Variants and performances (extracts, values according to DIN EN 14511)
Model — Nominal power (A2/W35) — SCOP (W35) — Nominal power (A7/W35) — COP (A7/W35) — Dimensions (L × H × D) — Applications
WAB 8-A-RME-A — 4.01 kW — 4.78 — 4.06 kW — 4.89 — 1 010 × 1 647 × 758 mm — Heating, Cooling, DHW preparation
WAB 11-A-RME-A — 5.23 kW — 4.70 — 4.98 kW — 4.88 — 1 010 × 1 647 × 758 mm — Heating, Cooling, DHW preparation
WAB 14-A-RMD-A — 5.86 kW — 4.86 — 7.63 kW — 5.11 — 1 210 × 1 847 × 808 mm — Heating, Cooling
WAB 14-B-RMD-A — 3.81 kW — 4.86 — 4.34 kW — 5.18 — 1 210 × 1 647 × 808 mm — Heating, Cooling, DHW preparation

Technical characteristics / specifications

• Series / commercial name: Weishaupt Aeroblock® WAB.
• Type: Air-to-water monobloc heat pump (outdoor unit grouping all components).
• Refrigerant: R290 (propane), GWP ≈ 0.02 (natural refrigerant).
• Functions: Heating, DHW production (depending on variant), cooling.
• Operating outdoor temperature range: down to −22 °C.
• Maximum supply temperature: 70 °C.
• Modulating capacity: yes (adapts to thermal demand for efficiency and noise reduction).
• Acoustic comfort: compressors, fans and vibration dampers optimized for low noise emissions.
• Materials: aluminium, stainless steel and premium coatings for longevity.
• Labels / recognitions: KEYMARK (icon present on product sheet).
• Performance values indicated in accordance with DIN EN 14511 (reference on the product sheet).
• Applications: Heating, Cooling, DHW preparation (depending on model).
• Example models & performances: WAB 8-A-RME-A, WAB 11-A-RME-A, WAB 14-A-RMD-A, WAB 14-B-RMD-A (see table above for power, SCOP, COP and dimensions).
