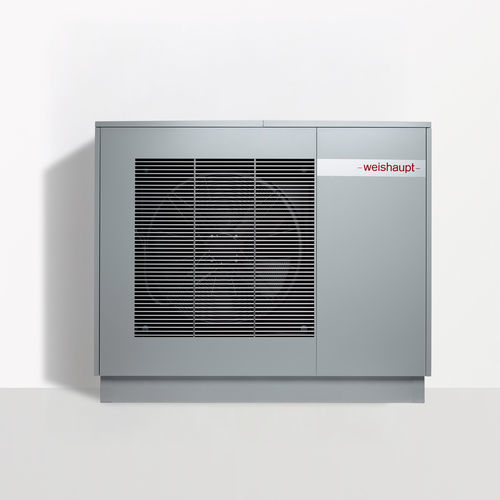

Air/water heat pump WWP serieslow-temperaturehot waterclass A+++
Add to favorites
Compare this product
Characteristics
- Type
- air/water
- Other characteristics
- low-temperature, hot water, class A+++
- Heating power
Min.: 18 kW
(24.47 hp)Max.: 60 kW
(81.58 hp)
Description
Description
The Weishaupt outdoor air-to-water heat pumps (WWP L A) are designed for installations where indoor space is limited. They provide efficient, comfortable and durable heating and cooling for buildings. Available capacities cover a range from single-family homes to commercial premises (from 18 to 60 kW depending on the variant).
Main advantages
Specific features & certifications
Model table (values according to DIN EN 14511)
Model — Type — Low-temperature heating efficiency class — High-temperature heating efficiency class — Energy label range — Nominal heating capacity (A7/W35) — COP (A7/W35) — Height (mm) — Width (mm) — Depth (mm) — Applications
WWP L 18 AD (R) — Outdoor air/water — A+++ — A++ — A+++ - D — 8.40 kW — 4.81 — 1650 mm × 910 mm × 750 mm — Heating, Cooling, DHW production
WWP LA 20/30-A R — Outdoor air/water — A+++ — A+++ — A+++ - D — 11.60 kW — 5.40 — 1517 mm × 1800 mm × 885 mm — Heating, Cooling, DHW production
WWP LA 43/60-A R — Outdoor air/water — A+++ — A++ — A+++ - D — 22.67 kW — 5.11 — 1764 mm × 1970 mm × 1000 mm — Heating, Cooling, DHW production
Note
1) Values and performances measured according to DIN EN 14511.
The Weishaupt outdoor air-to-water heat pumps (WWP L A) are designed for installations where indoor space is limited. They provide efficient, comfortable and durable heating and cooling for buildings. Available capacities cover a range from single-family homes to commercial premises (from 18 to 60 kW depending on the variant).
Main advantages
- Outstanding energy performance: from one kilowatt of electricity the unit delivers between three and four kilowatts of heat energy.
- Reliable heat production even at low outdoor temperatures (operation ensured down to -25 °C).
- Modulating output: the unit adapts to the building's heat demand, avoiding full-load cycling and improving efficiency while reducing noise emissions.
- Very quiet operation thanks to structural noise decoupling and an optimized fan geometry (installation possible at a minimum distance of 5 m from the nearest dwelling).
- Extended service life: selected materials, robust construction and good weather resistance ensure operational safety and long-term reliability.
- High flow temperatures: maximum flow temperature up to 70 °C, enabling high domestic hot water comfort and renovation applications.
- Complete solution: heating and domestic hot water production; options available for active building cooling accessories.
Specific features & certifications
- SG Ready: prepared for connection to future smart power grids.
- Electronic expansion valve: precise regulation of refrigerant flow for improved efficiency.
- EHPA quality label: compliance with international quality and performance requirements.
Model table (values according to DIN EN 14511)
Model — Type — Low-temperature heating efficiency class — High-temperature heating efficiency class — Energy label range — Nominal heating capacity (A7/W35) — COP (A7/W35) — Height (mm) — Width (mm) — Depth (mm) — Applications
WWP L 18 AD (R) — Outdoor air/water — A+++ — A++ — A+++ - D — 8.40 kW — 4.81 — 1650 mm × 910 mm × 750 mm — Heating, Cooling, DHW production
WWP LA 20/30-A R — Outdoor air/water — A+++ — A+++ — A+++ - D — 11.60 kW — 5.40 — 1517 mm × 1800 mm × 885 mm — Heating, Cooling, DHW production
WWP LA 43/60-A R — Outdoor air/water — A+++ — A++ — A+++ - D — 22.67 kW — 5.11 — 1764 mm × 1970 mm × 1000 mm — Heating, Cooling, DHW production
Note
1) Values and performances measured according to DIN EN 14511.
