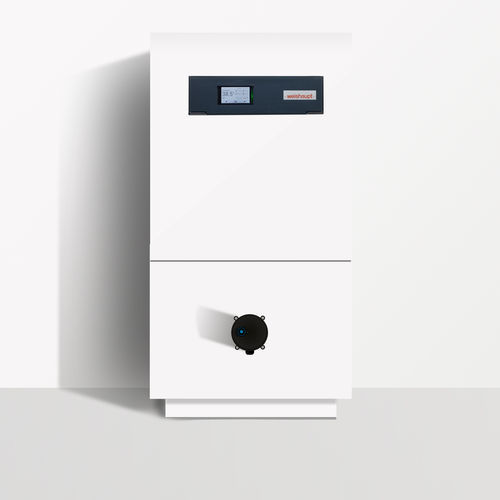

Brine/water heat pump WWP S series

class A+++energy savinghigh-temperature

Presentation
The Weishaupt brine-to-water heat pumps (WWP S) recover subsurface heat for heating and cooling. Quiet, efficient systems suitable for a wide range of building types, with available models covering a broad power range (approximately 6 to 130 kW depending on configuration).

Main features

• Energy source: geothermal heat via a brine (glycol) / water circuit.
• High efficiency: can deliver up to about 5 kW of thermal energy per 1 kW of electrical input (performance coefficients among the best on the market).
• Complete supply: components sized and coordinated (class A circulator, room thermostat, possibility of geothermal drilling and connection up to the building boundary).
• Full production: heating and domestic hot water production (multifunction WKS cylinder available for compact integration of DHW cylinder, buffer tank and connection components).
• Power range: multiple versions covering domestic and commercial needs (examples of models listed below).
• High-temperature variants for retrofit: some versions permit flow temperatures up to 70 °C.
• Quiet operation: structural noise decoupling, acoustic insulation of the casing and low-noise, low-vibration compressors.
• Cooling: possibility of cooling (passive summer cooling using the subsurface constant temperature and using the heating circuit as a cooling circuit).
• Durability: materials and construction designed for extended service life.
• Easy control: integrated controller with plain-text menus for straightforward system adjustment.
• Funding eligibility: high performance enabling eligibility for public incentives depending on national schemes.

Labels and options

• EHPA quality label.
• SG Ready functionality for connection to future smart electricity networks.
• Combined offer: heat pump + geoplus® probe from Weishaupt.

Models table (excerpts)
Type of heat pump ; Heating efficiency class LT ; Heating efficiency class HT ; Heating label scale ; Rated power (B0/W35) ; COP (B0/W35) ; Height x Width x Depth ; Typical applications
WWP S 6 ID ; A+++ ; A++ ; A+++ - D ; 6,10 kW ; 4,69 ; 840,0 mm x 650,0 mm x 555,0 mm ; Heating, DHW production
WWP S 8 ID ; A+++ ; A++ ; A+++ - D ; 8,10 kW ; 4,80 ; 840,0 mm x 650,0 mm x 555,0 mm ; Heating, DHW production
WWP S 11 ID ; A+++ ; A++ ; A+++ - D ; 10,90 kW ; 4,91 ; 840,0 mm x 650,0 mm x 555,0 mm ; Heating, DHW production
WWP S 14 ID ; A+++ ; A+++ ; A+++ - D ; 13,90 kW ; 5,00 ; 840,0 mm x 650,0 mm x 555,0 mm ; Heating, DHW production
WWP S 18 ID ; A+++ ; A++ ; A+++ - D ; 17,50 kW ; 4,70 ; 845,0 mm x 650,0 mm x 665,0 mm ; Heating, DHW production
WWP S 20 IH ; A+++ ; A++ ; A+++ - D ; 21,40 kW ; 4,60 ; 1 660,0 mm x 1 000,0 mm x 775,0 mm ; Heating, DHW production
WWP S 22 IB ; A+++ ; A++ ; A+++ - D ; 22,90 kW ; 4,40 ; 840,0 mm x 650,0 mm x 655,0 mm ; Heating, DHW production
WWP S 26 ID ; A+++ ; A++ ; A+++ - D ; 26,70 kW ; 5,10 ; 880,0 mm x 1 000,0 mm x 800,0 mm ; Heating, DHW production
WWP S 30 IR ; A+++ ; A++ ; A+++ - D ; 30 kW (indicative value depending on model) ; COP variable depending on model ; variable dimensions ; Heating, Cooling
WWP S 35 ID / 35 IDR ; A+++ ; A++ ; A+++ - D ; 33,68 - 34,80 kW ; 5,15 - 5,20 ; 880,0 mm x 1 000,0 mm x 800,0 mm ; Heating, DHW production
WWP S 50 ID ; A+++ ; A++ ; A+++ - D ; 52,00 kW ; 5,40 ; 1 660,0 mm x 1 000,0 mm x 797,0 mm ; Heating, DHW production
WWP S 70 IDR / 70 IDR ; A+++ ; A++ ; A+++ - D ; ~69,82 kW ; 4,72 ; 1 890,0 mm x 1 350,0 mm x 810,0 mm ; Heating, Cooling, DHW production
WWP S 75 ID ; A+++ ; A++ ; A+++ - D ; 73,50 kW ; 5,00 ; 1 891,0 mm x 1 348,0 mm x 797,0 mm ; Heating, DHW production
WWP S 90 / 90 ID / 90 IDH ; A+++ ; A++ ; A+++ - D ; 86,00 - 88,60 kW ; 5,00 - 4,70 ; ~1 890 - 1 891 mm x 1 348 - 1 350 mm x 775 - 831 mm ; Heating, DHW production
WWP S 130 ID / 130 IR ; A+++ ; A++/A+ ; A+++ - D ; 108,50 - 138,10 kW ; 4,40 - 4,70 ; ~1 891 mm x 1 348 mm x 775 - 829 mm ; Heating, DHW production

Notes
Power and COP values are given according to standard (e.g. DIN EN 14511 for nominal powers B0/W35). Performance may vary depending on configuration, source temperature and installation conditions. Some variants are specifically designed for cooling or for high-temperature applications.

Technical characteristics / specifications

• Type: brine-to-water heat pump.
• Power range (examples): from ~6 kW up to ~138 kW depending on model.
• Reference nominal thermal power: B0/W35 (indicative values per model listed above).
• COP (B0/W35): typically between ~4.40 and 5.40 depending on model.
• Heating efficiency class: mostly A+++ (depending on model and conditions) with LT/HT classes indicated per model.
• Maximum flow temperature (depending on variants): up to 70 °C for high-temperature versions.
• Functions: heating, DHW production (with WKS cylinder), cooling (passive/active depending on installation).
• Controls: integrated controller, plain-text menus for simple settings.
• Compliance / labels: EHPA, SG Ready options, ErP labeling available per model.
