Air/water heat pump WBB series

hot waterlow-temperatureclass A+++

Overview

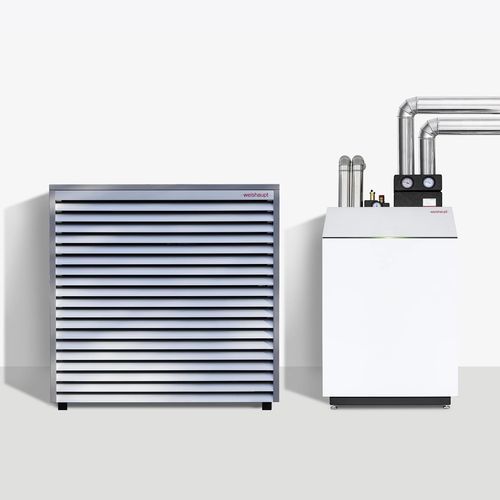

The new Biblock® WBB air/water heat pumps combine high performance with low noise levels. They consist of an outdoor unit and an indoor unit and extract energy from the surrounding air. Their design enables ultra-quiet operation, allowing installation at short distances from neighboring buildings.

Main features

• Ultra-quiet operation: example sound pressure level for outdoor unit WBB 12 [A7/W35] = 35 dB(A) at 1.5 m.
• Comprehensive standard equipment: the indoor unit includes deaeration and dirt separation devices, cooling equipment, a flow meter with integrated energy meter and electric backup for space heating and domestic hot water.
• Intuitive control: operation via a colour display with LED status bar; remote control via web browser or smartphone (Weishaupt app).
• Corrosion protection: large 45 m² evaporator heat-exchange surface with BlueFin coating.
• Composite acoustic insulation on the indoor unit for very low noise emission.
• Modulating and reliable operation down to outdoor temperatures of -22 °C.
• DHW comfort: steam injection enabling domestic hot water temperatures up to 65 °C.
• Multifunction cylinder WKS 300/100 LE (heat pump/distribution circuit interface): 300 L domestic hot water cylinder, 100 L buffer, class-A heating circulation pump.
• SG Ready equipped for connection to future smart electrical distribution networks.

Models and specifications
Model | Heat pump type | Low-temperature heating class | High-temperature heating class | Heating label range | Nominal power (A2/W35) | COP (A2/W35) | Nominal power (A7/W35) | COP (A7/W35) | Outdoor unit height | Outdoor unit width | Outdoor unit depth | Indoor unit height | Indoor unit width | Indoor unit depth | Applications
WBB 12-A-RMD-AI | Air/water Biblock | A+++ | A++ | A+++ - D | 4.98 kW | 4.30 | 5.01 kW | 4.85 | 1210.0 mm | 1220.0 mm | 750.0 mm | 1070.0 mm | 680.0 mm | 750.0 mm | Heating, Cooling, DHW preparation
WBB 12-A-RME-AI | Air/water Biblock | A+++ | A++ | A+++ - D | 4.98 kW | 4.30 | 5.00 kW | 4.79 | 1210.0 mm | 1220.0 mm | 750.0 mm | 1070.0 mm | 680.0 mm | 750.0 mm | Heating, Cooling, DHW preparation
WBB 20-A-RMD-AI | Air/water Biblock | A+++ | A+++ | A+++ - D | 9.63 kW | 4.41 | 9.64 kW | 5.16 | 1413.0 mm | 1419.0 mm | 850.0 mm | 1070.0 mm | 680.0 mm | 750.0 mm | Heating, Cooling, DHW preparation

Additional information

• Performance measurements according to DIN EN 14511 (reference values given for A2/W35 and A7/W35).
• Integrated cooling capabilities.
• Pre-equipment and accessories for integration into the building distribution circuit (multifunction cylinder, class-A circulator).
• Advanced control interface with colour display and LED bar; remote access via app and browser.

Technical specifications

• Series: Biblock® WBB
• Type: air/water bi-block heat pump (outdoor unit + indoor unit)
• Sound level: example WBB 12 [A7/W35] = 35 dB(A) at 1.5 m
• Operating range: modulating, reliable down to -22 °C (outdoor temperature)
• Evaporator exchanger: large 45 m² heat-exchange surface with BlueFin coating (corrosion protection)
• Integrated equipment: deaeration, dirt separation, flow meter with energy meter, electric backup
• Cooling function: equipment included as standard
• DHW comfort: steam injection to reach up to 65 °C
• Recommended multifunction cylinder: WKS 300/100 LE (300 L DHW + 100 L buffer + class-A heating circulator)
• Control: colour display + LED bar, access via smartphone/pc (Weishaupt app)
• Labels / compatibilities: SG Ready (prepared for smart electrical networks)
• Applications: Heating, Cooling, DHW preparation
