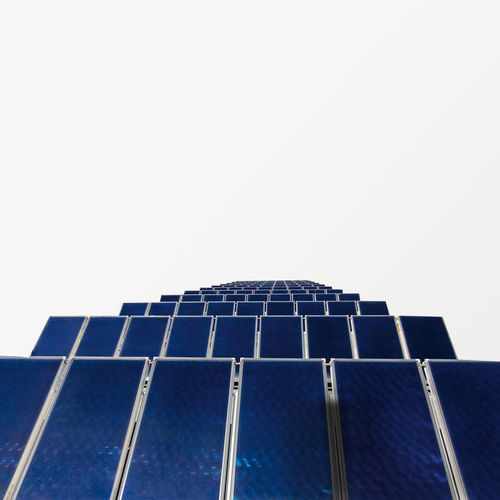

Water solar thermal collector WTS-F2 series

flat

Presentation
Collective solar systems Weishaupt WTS-F2. The WTS-F2 flat-plate collectors are designed for large domestic hot water (DHW) demands in hotels, sports centers, multi-family buildings and care residences, and can also provide significant heating support.

Energy efficiency maximized
The multilayer Mirotherm coating maximizes absorption of direct and diffuse solar radiation to increase thermal yield across varying light conditions.

Product benefits

• Durable, weather-resistant design: welded aluminium frame, aluminium backplate fixed into the frame, and solar glazing bonded with a permanent elastic seal for long-term stability.
• High-temperature resistance: integrated compensators absorb thermal expansion movements to extend service life of large collector fields.

Installation

• Multiple mounting options: adjustable rails and angle brackets adapt the collector field to various roof coverings.
• Hydraulic integration: built-in hydraulic manifolds allowing up to 10 collectors to be coupled on a single field.

Models and dimensions
WTS-F2 K5
Gross area: 2.51 m²
Width: 1,212.0 mm
Length: 2,070.0 mm
Height: 68.0 mm
Weight: 34.0 kg

WTS-F2 K6
Gross area: 2.51 m²
Width: 1,212.0 mm
Length: 2,070.0 mm
Height: 68.0 mm
Weight: 34.0 kg

Technical specifications

• Series / model: WTS-F2
• Coating: Mirotherm (multilayer) to maximise capture of direct and diffuse solar radiation
• Frame: welded aluminium, weather-resistant
• Backplate: aluminium sheet securely fixed into the frame
• Glazing: solar glass bonded with a permanent elastic seal
• Integrated compensators for thermal expansion movements
• Adjustable rails and angle brackets for different roof coverings
• Built-in hydraulic manifolds enabling coupling of up to 10 collectors
• Gross area per collector: 2.51 m²
• Dimensions (W x L x H): 1,212.0 mm x 2,070.0 mm x 68.0 mm
• Weight per collector: 34.0 kg
• Solar KEYMARK (DIN CERTCO): not explicitly provided
• Product IDs (site references): 48025003, 48025004
