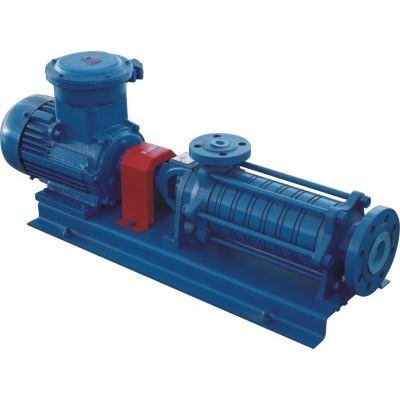

Side Channel Multistage Pump
The DB-65 multistage pump, centrifugal and side channel, is designed with 6 stages, having a
horizontal configuration, Shaft sealing by mechanical seal without cooling, for handling LPG
(liquid gas ), the liquids involving high-differential pressure, low NPSH conditions and aerated
liquids up to 50% gas, such as pumping from underground tanks. The use of a pre-compression
turbine at the suction end makes it possible to obtain a very small required NPSH, so that this
pump can be used under very difficult suction conditions.
LPG cylinder filling ,Pumping LPG from underground storage ,Bulk filling operations,Loading/
unloading of bulk trucks and transport trailers, vaporizer feed pumps.
Direction of rotation : Anti-clockwise facing the end of the pump drive shaft
Max. Pressure : 40 bars at 120‘C
Speed : 1450rpm
Power : AC380V,50Hz,4KW
Ambicnt Température : -20“C~60’C
Connecting flanges : DIN 2501, PN 40 as per DIN 2501. PN 40
Numbcr of stages : : 6
Bearings : Sleeve bearing at the pump end, bail bearing at the drive end
Lubrication : Plain bearing at the pump end lubricated by the pumped product, bail bearing at the drive end lubricated for life.
