water pump / electric / self-priming / centrifugal
MultiCargo MC

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

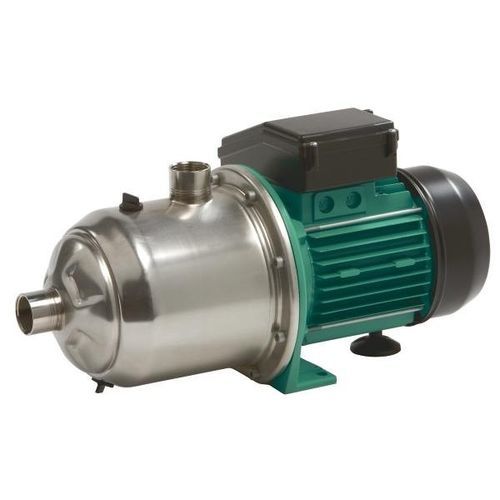

water pump water pump - MultiCargo MC
{{requestButtons}}

Characteristics

  • Media:

    water

  • Operation:

    electric

  • Priming:

    self-priming

  • Technology:

    centrifugal

  • Domain:

    industrial

  • Other characteristics:

    multi-stage, service

  • Flow:

    8 m³/h (282.5173 ft³/h)

  • Pressure:

    8 bar (116.03 psi)

  • Head:

    55 m (180'05")

Description

Technical data
Mains connection 1~230 V, 50 Hz, 3~400 V, 50 Hz
Max. inlet pressure of 4 bar
Fluid temperature max. +5 °C to +35 °C
Max. ambient temperature of +40 °C
Max. operating pressure of 8 bar
Protection class 1~: IP X4; 3~: IP 54
Rp 1 connections on suction and pressure sides

Materials
Pump housing made of 1.4301 stainless steel
Impeller made of Noryl
Shaft made of 1.4057 / 14404 stainless steel (1.1 kW)
Mechanical seal made of ceramic/carbon
Stage chambers made of Noryl
Seals made of NBR

Your advantages
Low-noise
Ideal as a base-load pump for rainwater utilisation
IE3-IEC three-phase AC motor (≥ 0.75 kW)

Construction
Self-priming multistage centrifugal pumps


Application
Water supply
Sprinkling
Irrigation and spraying
Rainwater utilisation

Equipment/function
Directly flanged motor
Thermal motor protection switch for single-phase motor (1~230V):

Scope of delivery
Pump
Installation and operating instructions
