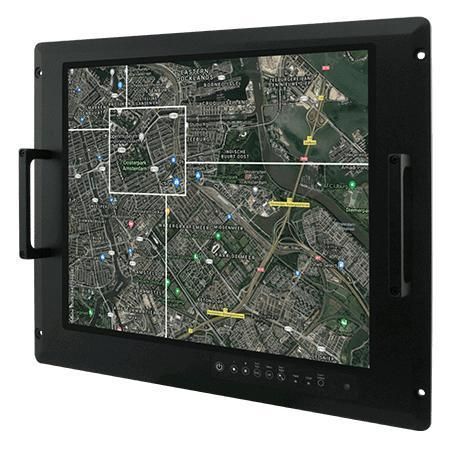

Touch screen monitor R19L100-MLA3FP

multitouch screenprojected capacitive touchscreenPCAP touchscreen

Overview
The 19.0-inch PCAP rack-mount defence display R19L100-MLA3FP is a MIL-STD-rated 19.0" panel for mission-critical command-and-control applications, featuring a projected capacitive multi-touch screen, 8U rack mechanical design and defence-grade connectors. Built and tested to MIL-STD environmental and MIL-STD EMC standards for reliable operation in harsh conditions.

Key Features

• 19.0 inches, 1280 x 1024 resolution
• Compliant with MIL-STD-810G / MIL-STD-461 series
• Rack-mount mechanical design (8U); optional VESA mount
• Projected Capacitive (PCAP) multi-touch touchscreen
• Defence-grade power connector MIL-DTL-38999/1
• Power options: AC 100–240V (±10%) default; DC 9–36V (±10%) optional
• 6-key OSD control pad and auto-brightness with ambient light sensor

Certifications

• MIL-STD-461F / MIL-STD-461G
• MIL-STD-810G / MIL-STD-810H
• CE
• FCC

Product Details
Winmate defence console displays are engineered for command centers and mission-critical racks, with ergonomic integration for control rooms and a compact 19.0-inch footprint allowing easy rack integration.

Defence-grade connectors and I/O enable cable-to-panel compatibility: MIL-DTL-38999 Type I power input and optional Type III I/O connectors where specified.

PCAP touchscreen supports precision gesture interactions (single- and multi-finger gestures such as pinch, zoom, rotate and drag) for responsive control.

Auto-brightness control adjusts display luminance via an integrated ambient light sensor.

Technical specifications

• Model: R19L100-MLA3FP
• Manufacturer: Winmate
• Display Size: 19.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Projected Capacitive Multi Touch Screen (default); PCAP with ITO Film (optional)
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 85 / 85 / 80 / 80
• Display Color: 16.7M colors
• Active Area: 376.32 x 301.06 mm
• Operating Humidity: 10% to 95% RH
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C
• IP Rating: Front IP65
• TEMPEST (optional): NSA NSTISSAM TEMPEST/1-92; NATO SDIP-27
• Compliance (EMC / Standards): MIL-STD-461 series (various CE/RE/CS/RS tests as specified)
• Environmental Compliance: MIL-STD-810H (vibration, humidity, transit drop methods)
• Certifications: CE, FCC
• IO Ports: 1 x USB (touch); 1 x VGA; 5 x BNC (R,G,B,H,V); 1 x DVI-D
• Mechanical Dimensions: 482.6 x 399.3 x 79.6 mm
• Mounting: Rack mount (default); VESA mount (optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Power Rating: AC 100–240V (±10%) default; DC 9–36V (±10%) optional
• Control / Buttons: 6-key OSD control pad
• Accessories (supplied): User manual (hardcopy), MIL-DTL-38999/1 power cord, VGA cable, DVI cable, VGA to 5 BNC shielding cable
• Use Cases: Command & control centers, defence consoles, training simulators, mission-critical environments
