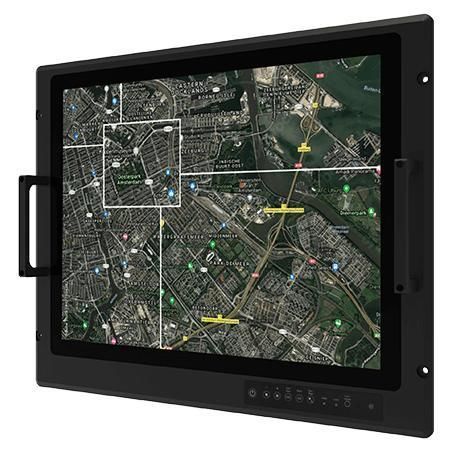

Multitouch screen monitor R21L100-MLM1FP

projected capacitive touchscreenPCAP touchscreen21.3"

Overview The 21.3-inch PCAP rack-mount defence display R21L100-MLM1FP is engineered for command-centre and mission-critical defence applications. It features a 1600 x 1200 (4:3) panel with projected capacitive multi-touch, MIL-STD environmental and EMC compliance, an 8U rack form factor and optional VESA mounting. Defence-grade power connectors and tested reliability enable integration with military systems.

Key features

• 21.3-inch 1600 x 1200 PCAP rack-mount defence display
• Projected capacitive multi-touch with gesture support (pinch, rotate, pan)
• Compliant with MIL-STD-810G/H and MIL-STD-461F/G EMC standards
• Rack-mount mechanical design (8U); optional VESA mount
• Defence-grade power connector MIL-DTL-38999/1; optional MIL-DTL-38999 Type III I/O
• Power: AC 100–240V ±10% (default); DC 9–36V ±10% (optional)
• 6-key on-screen display (OSD) control pad

Certifications

• MIL-STD-461F / 461G (EMC)
• MIL-STD-810G / 810H
• CE
• FCC
• TEMPEST / NATO SDIP-27 (optional)

Applications and design

• Command centres, control rooms and mission-critical defence consoles
• Rack and console integration with military-grade connectors for system interoperability
• High-visibility panel (1000 nits) and ambient light sensor for automatic brightness adaptation
• Fanless metal housing with aluminum bezel for low-maintenance operation

Technical specifications

• Model: R21L100-MLM1FP
• Brand: Winmate
• Display: Projected Capacitive Multi Touch Screen (standard); PCAP with ITO film (optional)
• Size: 21.3 inches
• Resolution: 1600 x 1200 (4:3)
• Brightness: 1000 nits
• Contrast ratio: 1800:1
• Viewing angles: 89/89/89/89
• Colors: 16.8M
• Active area: 432 x 324 mm
• Operating humidity: 10% to 95% RH
• Operating temperature: 0 to 50 °C
• Storage temperature: -10 to 60 °C
• Compliance: MIL-STD-461G (CE/RE/CS/RS default, extended options available), MIL-STD-810H (vibration, humidity, transit drop)
• Video I/O: 1 x VGA; 5 x BNC (R,G,B,H,V); 1 x DVI-D
• USB: 1 x USB for touch
• Dimensions (W x H x D): 539.1 x 430.3 x 71.4 mm
• Mounting: Rack mount (default); VESA mount (optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Accessories: User manual (hardcopy); power cord MIL-DTL-38999/1; VGA cable; DVI cable; VGA-to-5-BNC shielding cable
• Power rating: AC 100–240V ±10% (default); DC 9–36V ±10% (optional)
• OSD control: 6-key control pad (Power / Brightness DOWN; Brightness UP / Night; Day / Exit; Auto / Menu)
