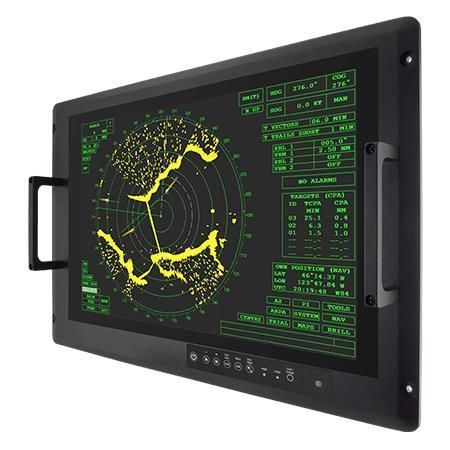

Multi-touch screen monitor W24L100-MLA2FP

projected capacitive touchscreenPCAP touchscreenfor displays

Overview
The 24-inch PCAP rack-mount defence display W24L100-MLA2FP is engineered for mission-critical military and defence command consoles and control rooms. It combines a projected-capacitive multi-touch panel with Full HD resolution in a rack-mount mechanical design for straightforward integration.

Key Features

• 24 inches, 1920 x 1080 Full HD
• Projected Capacitive (PCAP) multi-touch
• Rack-mount ready (8U) with VESA support
• Meets MIL‑STD‑810G environmental and MIL‑STD‑461 series EMC standards
• Defence-grade power connector MIL‑DTL‑38999/1
• AC 100–240 V (±10%) default; DC 9–36 V (±10%) optional
• On-screen display (OSD) with 6-key control

Certifications

• MIL‑STD‑461F / MIL‑STD‑461G (EMC listings)
• MIL‑STD‑810G / MIL‑STD‑810H (environmental tests)
• CE, FCC

Product Highlights
Built and tested for defence environments, the display supports integration with existing systems via MIL‑DTL‑38999 connectors and optional I/O configurations. The metal, fanless enclosure and in-house reliability tests target continuous operation under harsh conditions.

User Experience & Design
The PCAP touchscreen supports multi-finger gestures (pinch, zoom, rotate, drag). An ambient light sensor provides automatic brightness adjustment. Mechanical options include standard VESA mounting and optional rack-mount (8U) integration for command consoles.

Technical Specifications

• Model: W24L100-MLA2FP
• Display size: 24.0 inches
• Resolution: 1920 x 1080 (Full HD)
• Touch / Glass: Projected Capacitive Multi Touch (default); PCAP with ITO film (optional)
• Brightness: 250 nits
• Contrast ratio: 3000:1
• Viewing angles: 89/89/89/89
• Colors: 16.7M
• Active area: 527.04 x 296.46 mm
• Operating humidity: 10%–95% RH
• Operating temperature: 0–50 °C
• Storage temperature: -10–60 °C
• TEMPEST (optional): NSA NSTISSAM TEMPEST/1-92; NATO SDIP-27
• Compliance examples: MIL‑STD‑461G; MIL‑STD‑810H
• Certifications: CE, FCC
• USB: 1 × USB (touch)
• Video inputs: 1 × VGA; 5 × BNC (R,G,B,H,V); 1 × DVI‑D
• Dimensions: 635.2 x 430.9 x 66 mm
• Mounting: VESA (default); Rack mount (optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless
• Accessories: User manual, power cord MIL‑DTL‑38999/1, VGA cable, DVI cable, VGA-to-5 BNC shielding cable
• Power rating: AC 100–240 V (±10%); DC 9–36 V (±10%) optional
• OSD controls: 6-key pad (Power, Brightness DOWN/UP, Night, Day/Exit, Auto/Menu)
