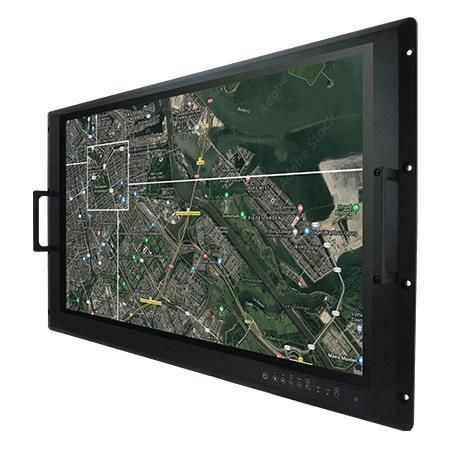

Multitouch screen monitor W32L100-MLA3FP

projected capacitive touchscreenPCAP touchscreen32"

Product Summary
The 32" PCAP Rack Mount Defence Display is a high-performance, rugged display designed for military and defence mission-critical applications. It features a 32.0-inch Full HD panel with projected capacitive multi-touch, built-in ambient light sensor for auto-brightness control, defence-grade power connector options, and rack-mount mechanical design for command center and control room integration. The product is built and tested to MIL-STD environmental and MIL-STD EMC standards to ensure reliable operation under harsh conditions.

KEY FEATURES

• 32", 1920 x 1080 resolution
• Compliant MIL-STD 810G / MIL-STD 461E
• Rack mount mechanical design, supports VESA mount (8U)
• PCAP multi-touch screen
• Defence-grade power connector (MIL-DTL-38999/1)
• AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional)
• Convenient on-screen display (OSD) controls (6-key)

CERTIFICATIONS

• MIL-STD 461F / MIL-STD 461G (EMC related certifications)
• MIL-STD 810G / MIL-STD 810H (environmental test standards)
• FCC
• CE

Overview & Design Focus
Reliable Computing Tailored for Defence Applications: Winmate Defence Console Rack Displays are built and tested according to MIL-STD-810G environmental and MIL-STD-461F/461G EMC standards with in-house reliability testing to ensure optimal performance in harsh defence environments.

Command Center Focused Design
Engineered to increase efficiency of command center and control room personnel with ergonomic rack-mount form factor (8U) and VESA compatibility for integration into defence consoles and mission-critical systems.

Defence-Grade Connectors
Equipped with MIL-DTL-38999 Series connectors for power input (type I) and optional I/O (type III) to ensure compatibility with existing defence cabling and high-reliability connections in mission environments.

Projected Capacitive Touch (PCAP) Experience
Modern multi-touch interactions including gestures (pinch, rotate, multi-finger) for intuitive user control in control-room applications.

Auto Brightness Control
Built-in ambient light sensor enables automatic brightness adjustments to maintain visibility in changing lighting conditions.

TECHNICAL SPECIFICATIONS

• Model: W32L100-MLA3FP
• Brand: Winmate
• Display Size: 32.0 inches
• Resolution: 1920 x 1080
• Touch / Glass: Projected Capacitive Multi Touch Screen (Default); PCAP with ITO Film (Optional)
• Panel Brightness: 400 nits
• Contrast Ratio: 4000:1
• View Angles: 89/89/89/89
• Display Color: 16.7M Colors
• Active Area: 698.4 x 392.85 mm
• Operating Humidity: 10% to 95% RH
• Operating Temperature: 0 ~ 50°C
• Storage Temperature: -10°C ~ 60°C
• TEMPEST (optional): USA NSA NSTISSAM TEMPEST/1-92 (optional); NATO SDIP-27 (optional)
• Compliance / EMC (default & optional): USA MIL-STD-461G CE101, CE102, RE101, RE102, CS118 (Default); MIL-STD-461G CS101, CS106, CS109, CS114, CS115, CS116, RS101, RS103 (Optional); NATO STANAG 4370/AECTP501 NCE01, NCE02, NRE01, NRE02, NCS12 (Default); STANAG 4370/AECTP501 NCS01, NCS07, NCS08, NCS09, NRS01, NRS02 (Optional)
• MIL-STD-810H (environmental tests): Vibration Method 514.6 (default); Humidity Method 507.6; Transit Drop Method 516.6; NATO optional tests: Vibration STANAG 4370/AECTP-401, Shock STANAG 4370/AECTP-402 Procedure I, Drop/Topple STANAG 4370/AECTP-404
• Certifications: CE, FCC
• IO Ports: USB: 1 x USB for touch screen; Video: 1 x VGA, 1 x DVI-D, 1 x HDMI
• Mechanical: Dimension: 825 x 500 x 87.2 mm
• Mounting: VESA mount (Default); Rear mount (Optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Power Rating: AC 100 ~ 240V, Universal, ±10% (Default); DC 9 ~ 36V, ±10% (Optional)
• Control: 6-key OSD control pad (Power/Brightness DOWN, Brightness UP/Night, Day/Exit, Auto/Menu)
• Accessories Included: 1 x User Manual (Hardcopy); 1 x Power Cord MIL-DTL-38999/1; 1 x VGA Cable; 1 x DVI Cable; 1 x HDMI Cable
