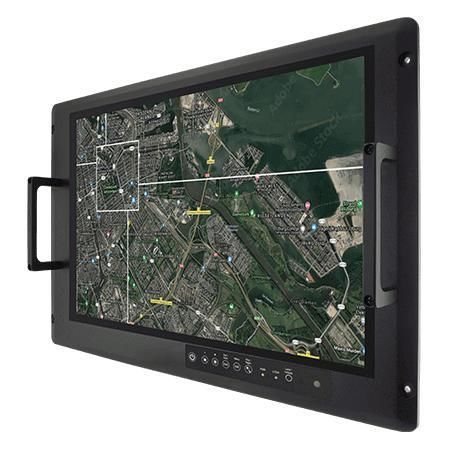

Multitouch screen monitor W22L100-MLA3FP

projected capacitive touchscreenPCAP touchscreenfor displays

Overview
W22L100-MLA3FP is a 21.5-inch PCAP rack-mount defence display designed for military and mission-critical control rooms. Projected capacitive multi-touch provides accurate gesture input for precise operator control. Built and tested by Winmate to meet defence regulatory requirements, the unit features an 8U rack form factor, fanless metal enclosure and MIL-grade power connector for reliable integration in harsh environments.

Key Features

• 21.5-inch Full HD (1920×1080), 250 nits, 3000:1 contrast
• Projected Capacitive (PCAP) multi-touch; 1×USB for touch
• Compliant / tested to MIL-STD-810H and MIL-STD-461G variants
• Rack mount mechanical design (8U); optional VESA mounting
• Defence-grade power connector MIL-DTL-38999/1; optional Type III I/O
• AC 100–240V (±10%) default; optional DC 9–36V input
• Auto-brightness with built-in light sensor; 6-key OSD control pad

Certifications

• MIL-STD-461F / MIL-STD-461G (EMI/EMC variants)
• MIL-STD-810G / MIL-STD-810H environmental tests (vibration, humidity, transit drop)
• CE, FCC; optional TEMPEST (NSA/NATO)

Product Highlights

• Engineered for defence: constructed and verified to MIL standards with internal reliability testing by Winmate.
• Command-centre integration: 8U rack design and multiple legacy video inputs (VGA, 5×BNC, DVI-D) for seamless system compatibility.
• PCAP touchscreen experience: multi-finger gestures, pinch-to-zoom, rotate and object manipulation.
• Compact, fanless metal housing (aluminum bezel) for constrained and harsh installations.

Technical specifications

• Model: W22L100-MLA3FP
• Brand: Winmate
• Display Size / Resolution: 21.5-inch, 1920×1080
• Touch / Glass: Projected Capacitive Multi Touch (standard); PCAP with ITO film (optional)
• Panel Brightness: 250 nits; Contrast Ratio: 3000:1
• View Angles: 89, 89, 89, 89; Display Color: 16.7M Colors
• Active Area: 476.64 × 268.11 mm
• Operating Humidity: 10% to 95% RH; Operating Temperature: 0 ~ 50°C; Storage Temperature: -10 ~ 60°C
• Compliance: MIL-STD-461G (selected CE/RE/CS items); MIL-STD-810H (vibration, humidity, transit drop); TEMPEST optional
• IO Ports: 1×USB (touch); Video: 1×VGA; 5×BNC (R,G,B,H,V); 1×DVI-D
• Mechanical Dimension: 580 × 384 × 71 mm; Mounting: Rack mount (Default, 8U); VESA optional
• Enclosure & Cooling: Metal housing with aluminum bezel; fanless design
• Accessories: User manual (hardcopy); MIL-DTL-38999/1 power cord; VGA cable; DVI cable; VGA-to-5-BNC shielding cable
• Power Rating: AC 100~240V ±10% (default); DC 9~36V ±10% (optional)
• Control: 6-key OSD control pad (Power/Brightness DOWN; Brightness UP/Night; Day/Exit; Auto/Menu)
