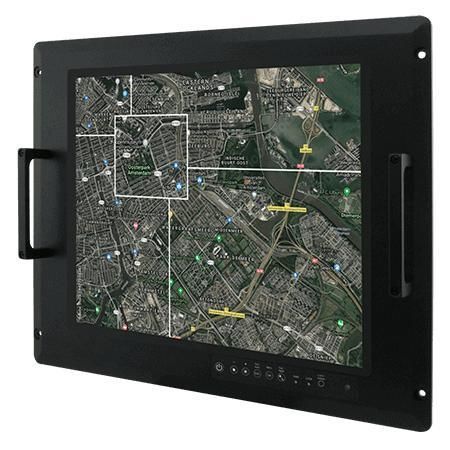

LCD monitor R17L100-MLA1FP

multitouch screenPCAP touchscreen17"

Overview
The R17L100-MLA1FP is a 17 in rack-mount defence display with a projected capacitive (PCAP) multi-touch screen, designed for mission-critical command, control and training environments. Built to MIL-STD environmental and EMC standards, it supports AC and optional DC power inputs and offers rack/VESA mounting options for integration into defence consoles.

Key Features

• 17 in, 1280 x 1024 resolution
• PCAP projected capacitive multi-touch (multi-touch gestures supported)
• Rack-mount mechanical design (8U) with VESA support
• Defence-grade power connector MIL-DTL-38999/1
• AC 100–240 V ±10% (standard); DC 9–36 V ±10% (optional)
• On-screen display (OSD) with 6-key control panel
• Fanless metal enclosure with aluminum bezel

Certifications

• MIL-STD-461F / MIL-STD-461G (EMC selections)
• MIL-STD-810G / MIL-STD-810H (environmental tests)
• CE, FCC

Product highlights
Designed for command and control
Ergonomic rack-mount form factor suited to control rooms and command consoles, enabling compact integration and operator-friendly layouts.

Defence-grade connectivity
Includes MIL-DTL-38999 type I power input and optional type III I/O connectors for compatibility with existing defence cabling and panel applications.

Touch and visibility
PCAP touchscreen supports modern gesture input; built-in ambient light sensor enables automatic brightness adjustment to maintain visibility in changing lighting conditions.

Technical specifications

• Model: R17L100-MLA1FP
• Brand: Winmate
• Display size: 17.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Projected Capacitive Multi-Touch (standard); PCAP with ITO film (optional)
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• Viewing angle: 85,85,80,80
• Display color: 16.7M
• Active area: 337.920 x 270.336 mm
• Operating humidity: 10% to 95% RH
• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• TEMPEST (optional): NSA NSTISSAM TEMPEST/1-92; NATO SDIP-27
• Compliance: MIL-STD-461G (CE101, CE102, RE101, RE102, CS118 default; additional items optional)
• Environmental: MIL-STD-810H (vibration, humidity, transit drop; NATO options available)
• Certifications: CE, FCC
• USB: 1 x USB for touch
• Video inputs: 1 x VGA; 5 x BNC (R,G,B,H,V); 1 x DVI-D
• Dimensions: 482.6 x 399.3 x 79.6 mm
• Mounting: VESA mount (default); rack mount (optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Accessories: User manual (hardcopy); power cord MIL-DTL-38999/1; VGA cable; DVI cable; VGA to 5 BNC shielding cable
• Power rating: AC 100~240V ±10% (default); DC 9~36V ±10% (optional)
• Control: 6-key OSD (Power, Brightness -, Brightness +/Night, Day/Exit, Auto/Menu)
