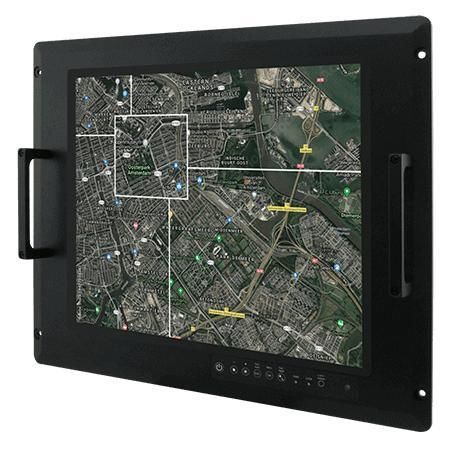

Multitouch screen monitor R15L600-MLA3FP

multi-touch screenprojected capacitive touchscreenPCAP touchscreen

Overview The 15-inch PCAP rack-mount defence display R15L600-MLA3FP is a mission-ready console panel engineered for military and command-center applications. It combines a projected-capacitive multi-touch interface, rack-mount mechanical design (standard 8U), defence-grade power connector options and automatic ambient-brightness control for consistent operation in varied lighting and harsh environments.

Key Features

• 15-inch display, 1024 x 768 resolution
• Compliant with MIL-STD 810G / MIL-STD 461F (EMC)
• Rack-mount mechanical design (8U), optional VESA mounting
• Projected Capacitive (PCAP) multi-touch screen supporting multi-finger gestures
• Defence-grade power connector MIL-DTL-38999/1 (optional Type III I/O)
• AC 100–240 V ±10% (standard); DC 9–36 V ±10% (optional)
• 6-key OSD control pad and built-in light sensor for auto-brightness

Certifications

• MIL-STD 461F / MIL-STD 461G (EMC test options)
• MIL-STD 810G / MIL-STD 810H (environmental and vibration/shock tests)
• CE
• FCC

Product details

• Built and tested to MIL-STD-810G environmental and MIL-STD-461F EMC standards with in-house reliability testing for harsh defence environments
• Ergonomic rack-mount console layout optimized for command-and-control rooms (8U integration)
• MIL-DTL-38999 cylinder connectors for cable-to-panel applications and compatibility with existing defence systems
• PCAP touchscreen supports gestures (pinch, rotate, swipe) for modern UI interaction
• Fanless metal enclosure with aluminum bezel for increased reliability

Technical specifications

• Display size: 15.0 inches; Resolution: 1024 x 768; Active area: 304.1 x 228.1 mm
• Touch / Glass: Projected Capacitive multi-touch (standard); PCAP with ITO film (optional)
• Brightness: 500 nits; Contrast ratio: 2500:1; Viewing angles: 88/88/88/88; Colors: 16.7M
• Operating humidity: 10% to 95% RH; Operating temperature: -20°C to 60°C; Storage temperature: -30°C to 70°C
• TEMPEST options: NSA NSTISSAM TEMPEST/1-92 (optional); NATO SDIP-27 (optional)
• Compliance examples: MIL-STD 461G CE101/CE102/RE101/RE102/CS118 default; additional MIL-STD 461G tests optional
• IO ports: 1 x USB (touch); 1 x VGA; 5 x BNC (R, G, B, H, V); 1 x DVI-D
• Mechanical: Dimensions 402 x 321 x 70 mm; Mounting: Rack mount (standard), VESA (optional); Enclosure: Metal housing with aluminum bezel; Cooling: Fanless design
• Accessories: User manual (hardcopy), power cord MIL-DTL-38999/1, VGA cable, DVI cable, VGA to 5 BNC shielding cable
