Windows 10 IoT Enterprise tablet M133MT

Windows 11 IoT Enterprise13.3"Intel® Core™ Ultra 5 125U

Product Overview

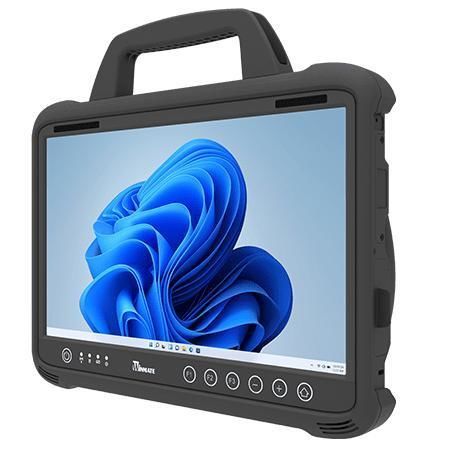

Winmate M133MT is a 13.3-inch ultra-rugged industrial tablet powered by the Intel® Core™ Ultra 5 125U processor with integrated NPU for on-device AI inference. It is engineered for field service, inspection, industrial mobility and mission-critical environments that require durable mechanical design, long lifecycle availability and a sunlight-readable display. Key mechanical elements include a removable kickstand that doubles as a carrying handle, magnesium-alloy housing with elastomeric bumpers, fanless cooling and IP65 rating.

Key Features

• 13.3" 1920 x 1080 IPS Full HD display, 500 nits, optical bonding for sunlight readability
• Intel® Core™ Ultra 5 125U processor with integrated NPU
• Removable kickstand usable as carrying handle
• Magnesium alloy housing with full-edge elastomeric rubber protection
• IP65 dust and water protection; MIL-STD-810G shock/vibration/drop
• Fanless thermal design for reliable operation in harsh environments

Certifications

• IP65
• MIL-STD-810G (shock, vibration, drop)
• MIL-STD-461G (EMC profiles)
• FCC
• CE

Summary of Highlights
AI-ready CPU/GPU/NPU architecture for local inference and edge analytics; sunlight-readable bonded Full HD display supporting finger/glove/stylus input; multiple memory (8/16/32 GB) and NVMe storage options up to 2 TB; extensive I/O including legacy RS232 and Gigabit LAN; rugged mounting and vehicle/docking accessory options.

Specifications

• Model: M133MT — Brand: Winmate
• Display: 13.3" 1920 x 1080 IPS, Projected Capacitive Multi-Touch, 500 nits, 1000:1, optical bonding
• Processor: Intel Core Ultra 5 125U (2.1 GHz base, up to 4.3 GHz)
• Memory: 8 GB (default); 16 GB / 32 GB optional
• Storage: 256 GB SSD (default); micro SDXC; optional 512 GB / 1 TB / 2 TB NVMe SSD
• Security: TPM 2.0, Kensington Lock support
• OS: Windows 11 IoT Enterprise LTSC (64-bit) default; Windows 10 IoT Enterprise LTSC optional
• Wireless: WLAN, Bluetooth; WWAN 4G LTE optional; GNSS (GPS, GLONASS)
• RFID: HF 13.56 MHz reader optional
• Dimensions / Weight: 338.2 x 239.8 x 33.8 mm; 2.4 kg (without kickstand), 2.5 kg (with kickstand)
• Cooling: Fanless
• Ports / I/O: 3 x USB 3.0 Type-A, 2 x USB 2.0 Type-A, 1 x USB 3.0 Type-C, 1 x RS232 (DB9), 1 x RJ45 Gigabit LAN, 1 x SDXC slot, 1 x Docking connector
• Audio / Camera: 2 x 1W speakers; Rear camera 8 MP with autofocus and LED
• Battery / Power: 15.4V typ. 5900 mAh Li-Polymer (4S1P) default; optional hot-swap battery; Adapter 100-240V → 19V DC
• Environmental: Operating humidity 30–80% RH non-condensing; Operating temp -20°C to 60°C; Storage temp -20°C to 60°C
• Ruggedness / EMC: MIL-STD-810G (shock/vibration/drop), MIL-STD-461G EMC profiles

Standard Accessories

• Stand with integrated handle (KS-M133WK)
• Adapter and power cord (A065R193P)
• Standard battery (BM133)

Optional Accessories

• Top handle (HD-M133)
• VESA mounting kits (VS-M133, VS-M133-2)
• Vehicle dock (VD-M133WK) and desk/vesa docks (DD-M133WK)
• Vehicle charger, battery charger, shoulder strap, stylus, spare handles
• 1D/2D barcode reader (optional)
