Windows 10 IoT Enterprise tablet M133TG

Windows 11 IoT Enterprise13.3"Intel® Core™ i5-1135G7

Overview

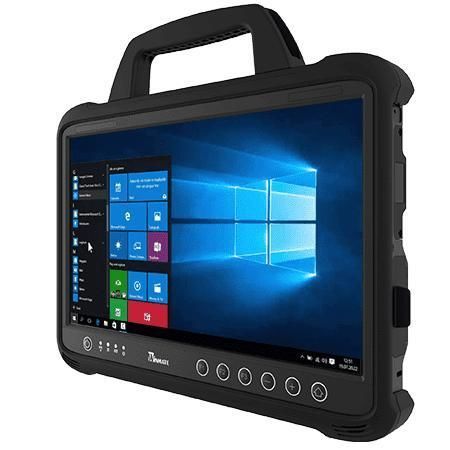

The Winmate M133TG is a 13.3″ industrial ultra-rugged tablet powered by an Intel Core i5-1135G7 processor. It is engineered for field service, inspection, vehicle and industrial mobility where sustained performance, rugged ingress protection and long lifecycle availability are required.

Key features

• 13.3″ FHD (1920 x 1080) IPS P-CAP display with optical bonding and high-brightness panel options (typ. 500 nits; some SKUs up to ~800 nits)
• Intel Core i5-1135G7 (Tiger Lake) CPU with Iris Xe graphics
• Magnesium alloy housing with all-around elastomeric rubber and removable kickstand that doubles as a carrying handle
• IP65 dust/water protection and MIL-STD shock, vibration and drop resilience
• Fanless or intelligent thermal cooling depending on configuration; optional hot-swap battery

Certifications

• IP65
• MIL-STD-810G (shock, vibration, drop)
• MIL-STD-461G (EMC variants)
• CE, FCC

Recommended applications

• Field service and inspections
• Vehicle-mounted diagnostics and mobile workshops
• Manufacturing, logistics and warehouse operations
• OEM integration and system deployments in harsh environments

Technical specifications

• Processor: Intel Core i5-1135G7 (2.4 GHz base, up to 4.2 GHz)
• Display: 13.3″, 1920 x 1080, P-CAP multi touch, optical bonding, contrast 1000:1, view angles 89/89/89/89
• Memory: 8GB default; options 16GB, 32GB
• Storage: 256GB SSD default; optional 512GB/1TB/2TB SSD; micro SDXC slot
• Connectivity: Wi‑Fi, Bluetooth, optional WWAN 4G LTE, GNSS (GPS/GLONASS), optional HF RFID 13.56 MHz
• Ports: multiple USB-A, USB-C (Thunderbolt 4 support per SKU), RS232 (DB9), RJ45 1G, SDXC, docking connector
• Camera: 8 MP rear with autofocus and LED
• Battery & power: 15.4V typ. 5900 mAh Li-Polymer (hot-swap optional); >10 hours (BAPCo TabletMark v3); adapter 19V DC
• Mechanical: 338.2 x 239.8 x 33.8 mm; 2.4 kg (without kickstand), 2.5 kg (with kickstand)
• Environment: operating temperature -20°C to 60°C; operating humidity 30%–80% RH non-condensing

Accessories & options

• Standard: adapter, power cord, standard battery, stand with integrated handle
• Optional: vehicle charger, battery charger, desk dock, vehicle dock, stylus, shoulder strap, top handle, VESA mounting kits, 1D/2D barcode scanner, additional SSD and memory options

Ordering & support

• Multiple SKUs to match thermal, display brightness and I/O requirements; configurable for WWAN, RFID and EMC classes
• Target customers: industrial buyers, OEMs and system integrators seeking long lifecycle availability and field-serviceable designs
• Contact reseller or Winmate for detailed datasheets, compatibility matrices and lifecycle support
