LCD monitor R10L100-PPT2(HB)

multitouch screenprojected capacitive touchscreenindustrial

Overview

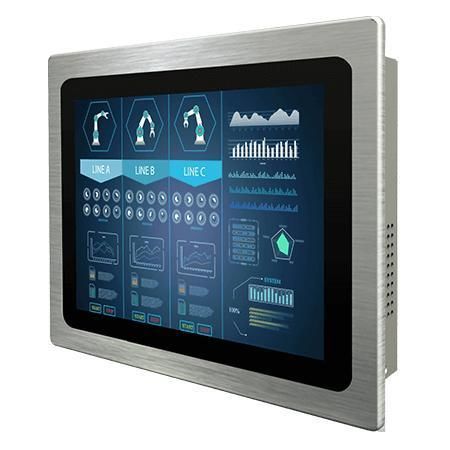

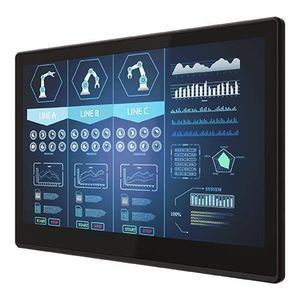

Winmate R10L100-PPT2(HB) is a 10.4" Multi-Touch Panel Mount Display designed for industrial visualization, control rooms and equipment monitoring. Key highlights include 10.4" diagonal, 1024 x 768 resolution, projected capacitive multi-touch, VGA (default) and optional HDMI/DVI video inputs, panel mount and VESA mounting options, aluminum housing and front IP65 protection.
Key features

• 10.4", 1024 x 768, Multi-Touch Panel Mount with projected capacitive touch
• VGA input (default) and HDMI/DVI optional
• Panel mount
• VESA mount
• Aluminum housing
• Front IP65

Product highlights
Low power consumption and effective heat dissipation for durable long-term operation; Easy mounting with universal wall and desk mounting options; High reliability with rugged enclosure for industrial applications and superior picture quality; Customization options include product size, customer logo, LCD panel brightness (standard and high-brightness options), glass cover surface treatment, display ports, and power plug variations.
Caractéristiques / Spécifications techniques

• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 10.4 inches
• Resolution: 1024 x 768
• Panel Brightness: 350 nits (Default); 1000 nits (Optional)
• Contrast Ratio: 1000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M Colors
• Active Area: 210.4 x 157.8 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 284.2 x 252 x 55 mm
• Cut out: 262 x 218 mm
• Weight: 2.3 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC in; 24V DC in (optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
