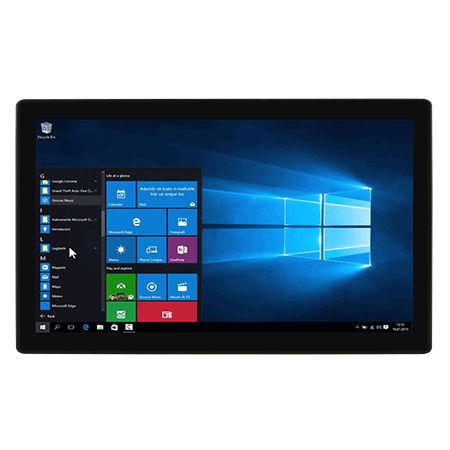

PCAP capacitive touch screen panel PC W24ITWS-MHA2

touch screenmultitouch screen24"

Overview
The W24ITWS-MHA2 is a 24" M-Series HMI Panel PC featuring an Intel® Core™ i5-1135G7 (Tiger Lake UP3). Designed for machine control, factory automation and operator HMI, it combines a fanless architecture, aluminum anti-corrosion housing, true flat edge-to-edge display, front IP65 sealing and a Projected Capacitive (P-CAP) multi-touch screen. The modular Box PC + Display design and removable 2.5" SSD bay simplify field service and configuration.

Key features

• Intel® 11th Gen Tiger Lake UP3 Core™ i5 CPU (i5-1135G7)
• True flat edge-to-edge 24" display, 1920×1080
• Aluminum housing with anti-corrosion treatment
• Front IP65 protection against dust and water splashes
• Projected Capacitive (P-CAP) multi-touch screen
• Fanless design for vibration- and dust-tolerant operation
• Wide-range 9–29V DC input
• Removable quick-access 2.5" SSD bay

Modular Design
The M-Series separates the Box PC and Display using a board-to-board docking connector. Users can swap display sizes or upgrade the computing module independently to match application requirements.

P-Cap Multi-Touch Screen (Durable & User-Friendly)
Projected capacitive touchscreen supports multi-touch input. The touch sensor can be mounted behind glass or vandal-resistant glass for improved scratch resistance and tolerance to cleaning agents.

Service-Friendly Access
Tool-accessible service window allows memory upgrades, HDD/SSD replacement and access to PCIe modules for fast on-site maintenance.

Front IP65 (Dust & Splash Resistant)
Front-side IP65 sealing protects the operator interface from dust and water splashes, suitable for kiosks and harsh industrial environments.

True Flat (Easy to Clean)
Edge-to-edge flat front surface reduces dirt buildup and simplifies cleaning procedures in production and food-handling areas.

Certifications

• CE
• FCC

Technical specifications

• Display - Size: 24.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Resolution: 1920 x 1080
• Display - Brightness: 250 nits
• Display - Contrast Ratio: 3000:1
• Display - View Angles: 89, 89, 89, 89
• Display - Active Area: 527.04 x 296.46 mm
• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 2x SO-DIMM; 4 GB default; optional 8 / 16 / 32 GB
• Storage: 1 x M.2 2280 NVMe SSD (128–512 GB); optional 2 x 2.5" removable SSD/HDD bay
• Ethernet controller: Intel® I211-AT and Intel® I219-LM
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Linux option does not support Wake on Touch)
• Wireless: WLAN/Bluetooth optional (M.2 2230 Key E)
• Expansion: 1 x mPCIe; 1 x PCIe x16 (x4 signal, module max 180 x 121 mm); 1 x M.2 2230 Key E; 1 x M.2 2280 Key M; swappable 2.5" bay
• Mechanical - Dimensions: 603.6 x 373 x 91.4 mm
• Mechanical - Cut out: 583 x 353 mm
• Mechanical - Weight: 12.5 kg
• Mechanical - Mounting: Panel mount (default); VESA optional
• Enclosure: Metal housing (aluminum, anti-corrosion treated)
• Cooling System: Fanless design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• IO Ports - USB: 4 x USB 3.2 Gen.1 (Type-A)
• IO Ports - Serial: 2 x RS232/422/485 (default RS232)
• IO Ports - LAN: 2 x Gigabit LAN RJ45
• IO Ports - Video: 1 x DP1.4 (default); 1 x HDMI 2.0 optional
• IO Ports - Audio: 1 x audio combo (Mic in / Line out)
• Indicator: 1 x LED indicator for storage
• Power Input: 1 x 9~29V DC, 3-pin terminal block
• Power Rating / Adapter: 9~29V DC with protection fuse; adapter 12V 120W
• Power Consumption: 45W~55W
• Control - Buttons: 1 x Power button with LED; 1 x Reset button
• Accessories (included/optional): 100~240V AC to DC adapter; power cord; open wire cable with terminal block; mounting clips; VESA screws
