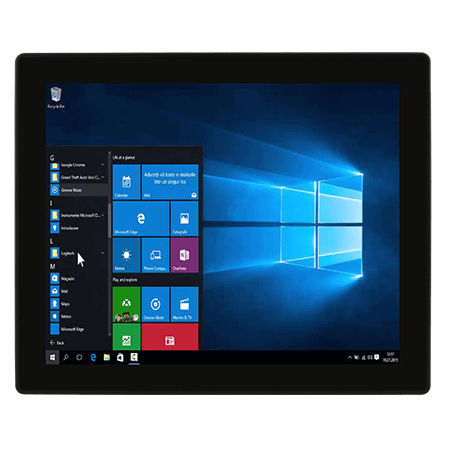

Multi-touch screen panel PC R19ITWS-MHA1

touch screenPCAP capacitive touch screen19"

Overview
Winmate R19ITWS-MHA1 is a 19" M Series HMI Panel PC built for industrial machine control, factory automation and operator HMI applications. It features an Intel® Core™ i5-1135G7 (11th Gen) CPU, a true-flat 19" PCAP touchscreen, modular Box PC + Display architecture, fanless cooling and front IP65 protection for harsh environments.

Key features

• Intel® 11th Gen Tiger Lake UP3 Core™ i5 (i5-1135G7)
• True flat edge-to-edge 19.0" display
• Aluminum housing with anti-corrosion treatment
• Front IP65 protection against dust and water
• Projected Capacitive Multi-Touch (PCAP)
• Fanless design for silent, maintenance-free operation
• Wide-range 9–29 V DC input
• Removable 2.5" SSD bay for quick service

Design & highlights
Modular design: The unit separates into two interchangeable modules (Box PC and Display) connected via a board-to-board docking connector, enabling flexible display size changes or Box PC swaps on site.

P-Cap multi-touch: Projected capacitive touchscreen supports simultaneous multi-touch and can be installed behind protective or vandal-resistant glass for improved scratch and cleaning-fluid resistance.

Service-friendly access: Dedicated service window allows easy memory upgrades, HDD/SSD replacement and PCIe module access to minimize downtime.

True flat front & IP65: Edge-to-edge front glass simplifies cleaning and reduces dust build-up; front panel IP65 protects against dust and water splashes for industrial kiosks and semi‑exposed installations.

Technical specifications

• Model: R19ITWS-MHA1
• Brand: Winmate
• Display - Size: 19.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Display - Resolution: 1280 x 1024
• Display - Panel Brightness: 400 nits
• Display - Contrast Ratio: 1000:1
• Display - View Angles: 85, 85, 80, 80
• Display - Active Area: 376.32 x 301.06 mm
• System - Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• System - Memory: 2 x SO-DIMM; 4GB (default); 8GB / 16GB / 32GB optional
• System - Storage: 1 x M.2 2280 NVMe SSD (128GB default up to 512GB); 2 x 2.5" removable SSD bay optional (256GB up to 512GB)
• System - Ethernet controller: Intel® I211-AT + Intel® I219-LM
• System - Security: Trusted Platform Module (TPM) 2.0
• System - Operating System: Windows 11 IoT Enterprise (64-bit) (optional); Windows 11 Pro 64-bit (optional); Linux Ubuntu 22.04 (optional; Wake on Touch not supported)
• System - WLAN / Bluetooth: Optional (M.2 2230 Key E for WiFi)
• System - Expansion: 1 x mPCIe; 1 x PCIe x16 (x4 signal, max module 180 x 121 mm); 1 x M.2 2230 Key E; 1 x M.2 2280 Key M; swappable 2.5" HDD/SSD bay
• Mechanical - Dimensions: 445.7 x 370.5 x 93.8 mm
• Mechanical - Cut out: 412 x 338 mm
• Mechanical - Weight: 10.4 kg
• Mechanical - Mounting: Panel mount (default); VESA mount (optional)
• Mechanical - Enclosure: Metal housing, aluminum with anti-corrosion treatment
• Mechanical - Cooling System: Fanless design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• Environment - IP rating: Front IP65
• Certification: CE, FCC
• IO Ports - USB: 4 x USB 3.2 Gen 1 (Type-A)
• IO Ports - Serial: 2 x RS232/422/485 (default RS232)
• IO Ports - LAN: 2 x Gigabit RJ45
• IO Ports - Video: 1 x DP 1.4 (default); 1 x HDMI 2.0 (optional)
• IO Ports - Audio: 1 x Audio combo connector (Mic in / Line out)
• IO Ports - Indicator: 1 x LED indicator for storage
• Power - Power Input: 1 x 9~29 V DC, 3-pin terminal block
• Power - Power Rating: 9V~29V DC with protection fuse
• Power - Adapter: 12V 120W (listed)
• Power - Consumption: 50W ~ 60W
• Control - Buttons: 1 x Power button with LED indicator; 1 x Reset button
• Accessory - Included/optional: 100~240V AC to DC adapter; power cord; open wire cable with terminal block connector; mounting clips; VESA screws
