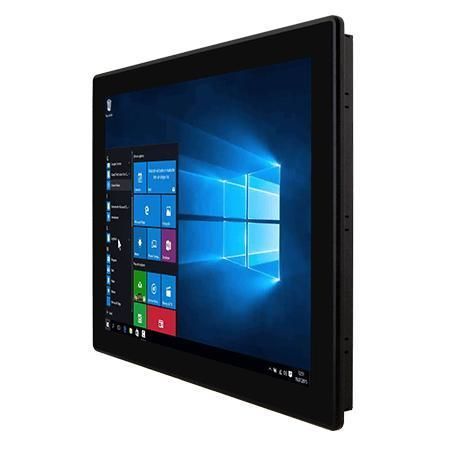

Multitouch screen panel PC R17ITWS-MHM1

PCAP capacitive touch screen17"1280 x 1024

Overview
The Winmate R17ITWS-MHM1 is a 17" M Series HMI Panel PC powered by Intel® Core™ i5-1135G7, engineered for machine control, factory automation and operator HMI applications. It features an edge-to-edge true flat display, aluminum anti-corrosion housing, front IP65 sealing, P-CAP multi-touch, fanless cooling, wide 9–29 V DC input and a removable 2.5" SSD bay for quick serviceability.

Key features

• Intel® 11th Gen Tiger Lake UP3 Core™ i5 CPU (i5-1135G7)
• True flat 17.0" edge-to-edge display, 1280 x 1024, 350 nits
• Aluminum housing with anti-corrosion treatment
• Front IP65 protection against dust and water
• Projected Capacitive (P-CAP) multi-touch screen
• Fanless design for maintenance-free operation
• Wide DC input: 9–29 V
• Quick removable 2.5" SSD bay slot

Design & Usability

• Modular architecture: interchangeable Box PC and Display modules connected via board-to-board docking for flexible upgrades or module swaps.
• P-Cap multi-touch behind vandal-resistant glass: supports multi-touch gestures, resists scratches and cleaning agents.
• Service-friendly access: accessible service window for memory, storage and PCIe module upgrades or replacements.
• True flat front surface for easy cleaning and reduced dust accumulation.

Certifications

• CE
• FCC

Technical specifications

• Model / Brand — R17ITWS-MHM1 / Winmate
• Display — Size: 17.0 inches; Touch/Glass: Projected Capacitive Multi Touch Screen; Resolution: 1280 x 1024; Brightness: 350 nits; Contrast: 1000:1; View angles: 85/85/80/80; Active area: 337.920 x 270.336 mm
• System — CPU: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz); Memory: 2x SO-DIMM (4 GB default; options 8/16/32 GB)
• Storage — 1 x M.2 2280 NVMe SSD (128 GB default, up to 512 GB); optional 2 x 2.5" removable SSD/HDD bay (256–512 GB options)
• Networking & Security — Ethernet: Intel I211-AT + I219-LM; WLAN/Bluetooth: optional; TPM 2.0
• Expansion — 1 x mPCIe; 1 x PCIe x16 (x4 signal, module max 180 x 121 mm); 1 x M.2 2230 Key E (WiFi); 1 x M.2 2280 Key M (NVMe); swappable 2.5" bay
• IO Ports — 4 x USB 3.2 Gen1 (Type-A); 2 x RS232/422/485 (default RS232); 2 x Gigabit LAN (RJ45); 1 x DP1.4 (default), HDMI 2.0 optional; 1 x audio combo (mic in / line out)
• Mechanical — Dimensions: 393 x 325 x 94.4 mm; Cut-out: 373 x 305 mm; Weight: 7.0 kg; Mounting: Panel mount (default), VESA optional; Enclosure: metal (aluminum, anti-corrosion)
• Environment — Operating humidity: 10%–90% RH non-condensing; Operating temperature: 0°C to 50°C; Storage: -10°C to 60°C; Front IP rating: IP65
• Power — Input: 9–29 V DC via 3-pin terminal block; Adapter example: 12 V 120 W; Consumption: ~55–65 W
• Control & Indicators — 1 x power button with LED; 1 x reset button; 1 x LED indicator for storage
• Accessories — AC adapter 100~240 V to DC, power cord, open wire cable with terminal block connector, mounting clips, VESA screws
