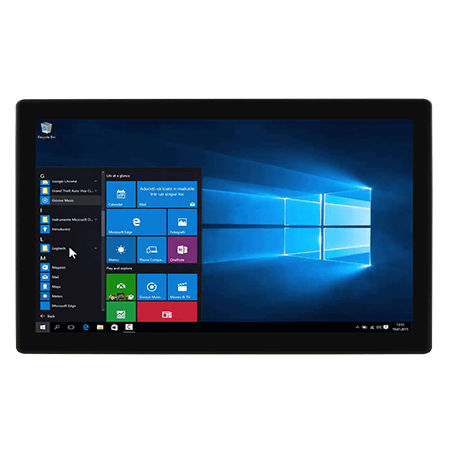

Multitouch screen panel PC W22ITWS-MHA3

PCAP capacitive touch screen21.5"1920 x 1080

Overview
Winmate W22ITWS-MHA3 is a 21.5-inch M-Series HMI Panel PC powered by Intel Core i5-1135G7. It is designed for machine control, factory automation and operator interfaces, featuring a modular box-and-display architecture, fanless cooling and front IP65 protection suitable for industrial environments.

Key features

• Intel Core i5-1135G7 (11th Gen, Tiger Lake UP3)
• 21.5-inch Full HD display, true flat edge-to-edge design
• Projected Capacitive Multi-Touch (PCAP)
• Aluminum housing with anti-corrosion treatment
• Front IP65 sealing against dust and water splash
• Fanless design; wide 9–29 V DC input
• Removable 2.5-inch SSD bay and M.2 NVMe storage support

Product highlights
Modular design: The M-Series separates the display and Box PC via a board-to-board docking connector, enabling easy replacement or upgrade of the display or computing module for field customization and lifecycle management.

P-Cap multi-touch: Projected capacitive touchscreen supports multi-touch input and can be specified behind glass or vandal-resistant glass for scratch and cleaning-fluid resistance.

Serviceability: Front-access service window allows memory upgrades, storage replacement and access to PCIe/mPCIe modules, reducing on-site maintenance time.

Front protection and cleaning: True flat front with IP65 rating on the bezel simplifies cleaning and prevents dust accumulation on the edges.

Specifications

• Model: W22ITWS-MHA3
• Brand: Winmate
• Display: 21.5 inch, 1920 x 1080, 250 nits, 3000:1 contrast, active area 476.64 x 268.11 mm
• Touch / Glass: Projected Capacitive Multi-Touch (PCAP)
• Processor: Intel Core i5-1135G7 (2.4 GHz up to 4.2 GHz)
• Memory: 2x SO-DIMM; default 4 GB; optional 8/16/32 GB
• Storage: 1 x M.2 2280 NVMe SSD (128–512 GB default options); swappable 2.5" bay (optional)
• Ethernet: Intel I211-AT + I219-LM; 2 x Gigabit LAN
• Security: TPM 2.0
• OS: Optional Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Linux Ubuntu 22.04 (optional)
• Expansion: 1 x mPCIe; 1 x PCIe x16 (x4 signals); M.2 Key E & Key M slots
• IO selected: 4 x USB 3.2 Gen1 Type-A; 2 x RS232/422/485; 1 x DP1.4 (HDMI optional); 1 x Audio combo
• Mechanical: 532.6 x 324.1 x 94.2 mm; cut-out 504 x 304 mm; weight 11.0 kg; panel mount (VESA optional)
• Power: 9–29 V DC (3-pin terminal block); adapter 12 V 120 W; consumption ~60–70 W
• Environment: Operating 0°C to 50°C; storage -10°C to 60°C; humidity 10%–90% RH non-condensing; Front IP65
• Certifications: CE, FCC
• Accessories: 100–240 V AC to DC adapter, power cord, open wire cable with terminal block, mounting clips, VESA screws
