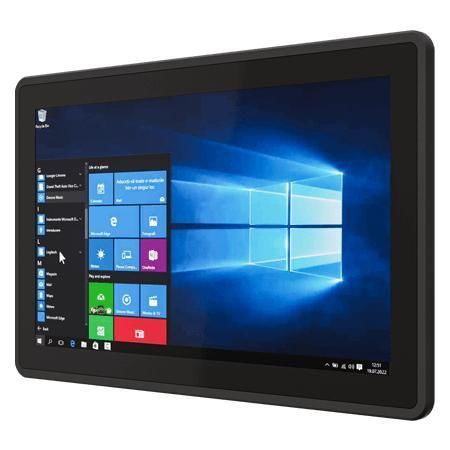

Multitouch screen panel PC W15ITWS-MHA4

with touch screenPCAP capacitive touch screen15.6"

Overview
Winmate W15ITWS-MHA4 is a 15.6-inch M-Series HMI Panel PC powered by Intel® Core™ i5-1135G7 (11th Gen Tiger Lake UP3). Designed for machine control, factory automation and operator HMI, it features a modular Box PC + Display architecture for field upgrades and long lifecycle availability. The aluminum housing is corrosion-treated, the unit is fanless and the front panel is sealed to IP65 for industrial operation.

Key Features

• Intel® Core™ i5-1135G7 (11th Gen)
• 15.6-inch true-flat edge-to-edge display
• Aluminum, corrosion-treated housing
• Front protection IP65 (dust & water splashes)
• Projected Capacitive (P-Cap) multi-touch
• Fanless design; 9–29 V DC wide-range input
• Removable 2.5-inch SSD bay and M.2 NVMe support
• Support for PCIe x4 card and expansion slots

Design & Serviceability
Modular board-to-board docking separates the Box PC and display, enabling easy replacement of display sizes or box units. A service window gives fast access to SO-DIMM slots, storage and PCIe/M.2 modules to minimize downtime and simplify field upgrades.

Display & Touch
True-flat front eases cleaning and reduces vandalism risk. P-Cap multi-touch supports simultaneous touches and can be mounted behind glass or vandal-resistant cover glass for scratch and cleaning-fluid resistance.

Environment & Protection
Front IP65 sealing protects against dust and direct water splashes. Combined with corrosion-treated housing, wide operating ranges and fanless design, the unit suits demanding industrial and kiosk environments.

Certifications
CE, FCC

Specifications

• Model: W15ITWS-MHA4
• Brand: Winmate
• Display: 15.6-inch, 1920 x 1080, 400 nits, 800:1 contrast
• Touch / Glass: Projected Capacitive multi-touch
• Processor: Intel Core i5-1135G7 (2.4 GHz up to 4.2 GHz)
• Memory: 2x SO-DIMM (4 GB default; options up to 32 GB)
• Storage: 1 x M.2 2280 NVMe (128–512 GB default options); optional swappable 2.5-inch SSD bay
• Ethernet: Intel I211-AT and I219-LM
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 22.04
• Expansion: mPCIe, PCIe x16 (x4 signal), M.2 Key E/Key M, swappable 2.5-inch bay
• IO: 4 x USB 3.2 Gen1, 2 x RS232/422/485, 2 x GigE RJ45, DP1.4 (HDMI optional), audio combo
• Power: 9–29 V DC input (3-pin terminal); adapter 12 V 120 W; consumption 45–55 W
• Environment: Operating 0°C to 50°C; 10%–90% RH non-condensing; Storage −10°C to 60°C
• IP Rating: Front IP65
• Certifications: CE, FCC
