PCAP capacitive touch screen panel PC R12ITWS-MHM2

multitouch screen12.1"1024 x 768

Overview

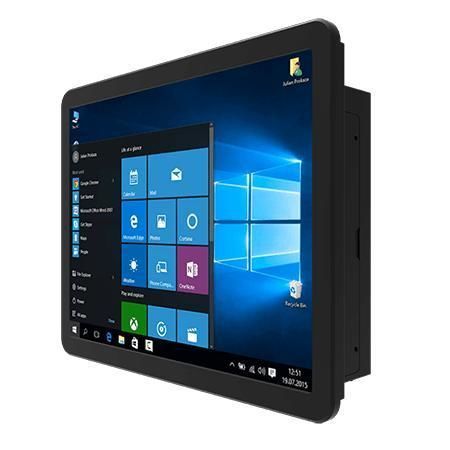

Winmate R12ITWS-MHM2 is a 12.1-inch M-Series HMI Panel PC built for machine control, factory automation and operator interfaces. It features a modular two-part design (Box PC + Display), fanless operation, front IP65 sealing, projected capacitive multi-touch and a service window for on-site upgrades and maintenance.

Key Features

• Intel Core i5-1135G7 (11th Gen Tiger Lake UP3)
• True flat, edge-to-edge 12.1-inch display
• Aluminum housing with anti-corrosion treatment
• Front IP65 protection
• Projected Capacitive (P-Cap) multi-touch
• Fanless design
• Wide 9–29 V DC input
• Removable 2.5" SSD bay

Design & Usability

• Modular architecture: interchangeable Box PC and Display connected via board-to-board docking for flexible field swaps.
• P-Cap multi-touch: touch sensor mounted behind glass or vandal-resistant glass for scratch and cleaning-fluid resistance.
• Service window: quick access to memory, storage and PCIe modules for on-site maintenance.
• True flat front: easy cleaning with no trapping edges.
• Front IP65: dust and splash protection suitable for harsher environments and kiosk use.

IO & Expandability

• USB: 4 x USB 3.2 Gen 1 (Type-A)
• Serial: 2 x RS232/422/485 (default RS232)
• LAN: 2 x Gigabit RJ45
• Video: 1 x DP1.4 (standard); HDMI 2.0 optional
• Audio: 1 x audio combo (Mic in / Line out)
• Expansion: 1 x mPCIe; 1 x PCIe x16 (x4 signal) module slot; 1 x M.2 2230 Key E; 1 x M.2 2280 Key M (NVMe); swappable 2.5" HDD/SSD bay
• Power input: 9~29 V DC via 3-pin terminal block

Accessories

• 100~240 V AC to DC adapter
• Power cord
• Open-wire cable with terminal block connector
• Mounting clips and VESA screws

Certifications

• CE
• FCC

Technical specifications

• Model: R12ITWS-MHM2
• Display size: 12.1 inches
• Touch / Glass: Projected Capacitive Multi-Touch Screen
• Resolution: 1024 x 768
• Brightness: 500 nits
• Contrast ratio: 1000:1
• Viewing angles: 89/89/89/89
• Active area: 245.76 x 184.32 mm
• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 2x slots; 4 GB default; options 8/16/32 GB
• Storage: 1 x M.2 2280 NVMe (128 GB default, up to 512 GB); optional 2 x 2.5" removable SSD
• Ethernet controller: Intel I211-AT + I219-LM
• Security: TPM 2.0
• Operating systems: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (Wake on Touch not supported on Linux)
• WLAN / Bluetooth: optional
• Mechanical dimensions: 322 x 256 x 91 mm
• Cut-out: 301 x 237 mm
• Weight: 5.4 kg
• Mounting: panel mount default; VESA optional
• Enclosure: aluminum metal housing, anti-corrosion treated
• Cooling: fanless
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Front IP rating: IP65
• Power input: 9~29 V DC, 3-pin terminal block (protected by fuse)
• Adapter: 12 V 120 W (typical)
• Power consumption: 45 W ~ 55 W
• IO summary: 4 x USB 3.2 Gen1, 2 x RS232/422/485, 2 x Gigabit LAN, DP1.4, optional HDMI 2.0, 1 x audio combo
