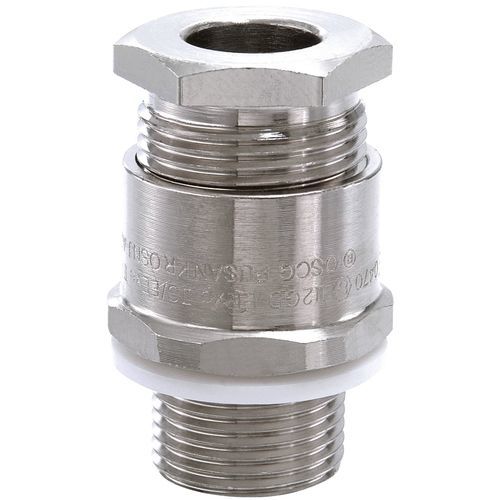

Non-armored cable cable gland EX d OS-A2F-U seriesbrassnickel-plated brassIP66
Add to favorites
Compare this product
Characteristics
- Material
- nickel-plated brass, brass
- Protection level
- explosion-proof, IP66, IP67, for hazardous areas
- Other characteristics
- for non-armored cables
- Cable diameter
Min.: 3 mm
(0.12 in)Max.: 68 mm
(2.68 in)- Thread diameter
Min.: 16 mm
(0.63 in)Max.: 75 mm
(2.95 in)- Operating temperature
Min.: -60 °C
(-76 °F)Max.: 110 °C
(230 °F)
Description
Marking - Ex tb, Ex ebEx db
Approval - ATEX, IECEx
Material - Gland Brass nickel-plated, Gasket Silicone
