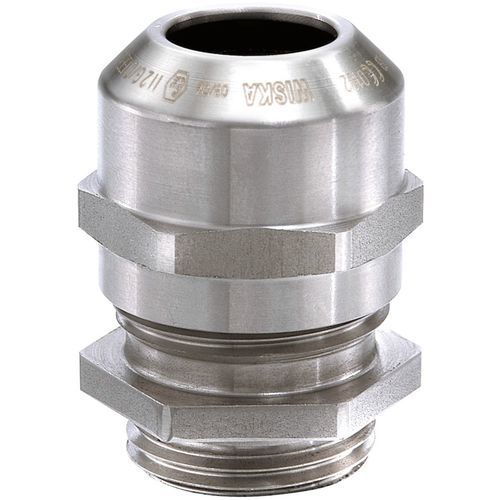

explosion-proof cable gland / stainless steel / IP68 / IP66
ESSKE series

Add to MyDirectIndustry favorites
Compare this product
explosion-proof cable gland / stainless steel / IP68 / IP66 explosion-proof cable gland / stainless steel / IP68 / IP66 - ESSKE series
{{requestButtons}}

Characteristics

  • Material:

    stainless steel

  • Protection level:

    explosion-proof, IP68, IP66, for hazardous areas, halogen-free

  • Other characteristics:

    straight, threaded

  • Cable diameter:

    Min.: 4 mm (0.16 in)

    Max.: 48 mm (1.89 in)

  • Operating temperature:

    Min.: -60 °C (-76 °F)

    Max.: 75 °C (167 °F)

  • Thread diameter:

    Min.: 12 mm (0.47 in)

    Max.: 63 mm (2.48 in)

Description

The SPRINT EX Cable Gland (Metric) is capable of working under a temperature range of -40 °C to 75 °C. It is designed using stainless steel A2 (1.4305/AISI 303), polyamide (for clamping cage) and EPDM (for gasket) materials. A protection class conforming EN 60 529 and DIN 40 050-T9 is incoporated. The cable gland is equipped with a sealing ring. This secures the seal-tight fastening to its enclosure rack. It also includes dust-protection and explosion protection features.
