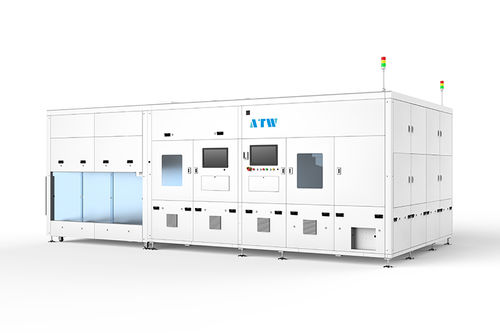

Automatic laser ablation system D632D

D632D Half-cut Solar Cell UV Ablation System is mainly designed for the laser ablation process of half-cut XBC cells. It leverages ultra-violet and green picosecond lasers to ablate the patterns on BSG/PSG&n-poly/a-Si:H film, which, when working in conjunction with subsequent wet process, achieves p-/n- region isolation on the back. P1 capacity ≥9600pcs/h@210*105 P2 capacity ≥7200pcs/h@210*105 Alignment accuracy ≤10um Patterned laser of excellent accuracy and great stability Recognized by customers for its great stability, excellent alignment accuracy, minimized heat affected zone, and high-efficiency dust removal High stability Highly stabilized directional optical system. High uniformity High-uniformity shaped light spot; support spot size adjustment, without the need to change the DOE. High speed Ultra high-speed galvanometer scanning system. High precision High-precision positioning and alignment. High-efficiency dust removal High-efficiency dust removal system to minimize the impact of dust on processes and components.
