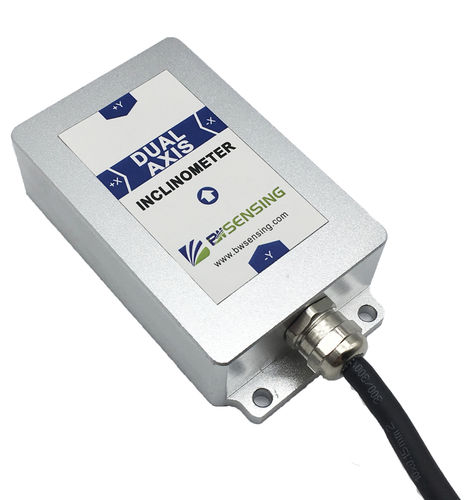

Dual-axis inclinometer BWS2500

CANMEMShigh-precision

BWS2500 Super High-accuracy CAN Double-axes Inclinometer BWS2500 Product Introduction： BWS2500 is a dual-axis super high-accuracy inclinometer with MEMS technology and CAN output. It has a measuring range of ±30° and a full-scale accuracy of 0.001°. Technical Specifications Measuring range: ±30° Measuring axis: X-Y Accuracy: 0.001°(Max) Resolution: 0.0005° Zero temperature drift: ±0.0007°/℃ Cross axis error: 0.001 Power-on time: ＜3s Frequency response: 5~100Hz(Adjustable) Baud rate: 2400~115200 MTBF: ≥90000 hours/time Electromagnetic compatibility: according to GBT17626 Insulation resistance: ≥100MΩ Shock resistance: 2000g,0.5ms,3times/axis Weight: 350g If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (sales@bwsensing.com), we will send you the newest manual via email. Thank you for your understanding. It is a highly accurate product in the industry for now. The product uses a high-resolution differential digital-to-analog converter with built-in automatic compensation and filtering algorithms to reduce errors caused by environmental changes. It measures the change of static gravitational field and converts it into angle change. The change directly outputs the current roll angle and pitch angle through digital mode. It is easy to install and simple to use, small in size, résistant to external electromagnetic interférence, and capable of withstanding vibration shock. It apply to military equipment, industrial automation, surveying and mapping, etc.
