single-axis inclinometer / RS-485 / RS-232 / TTL
BWH516

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

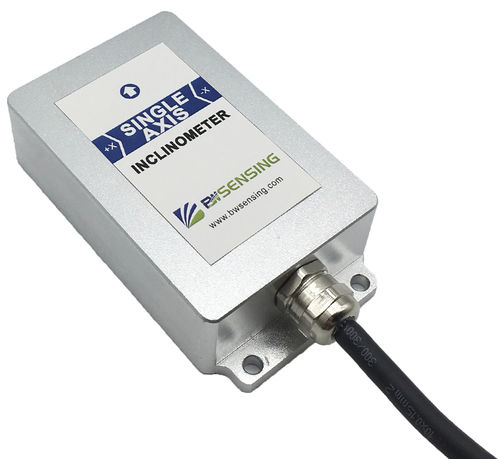

single-axis inclinometer single-axis inclinometer - BWH516
{{requestButtons}}

Characteristics

  • Number of axes:

    single-axis

  • Output:

    RS-485, RS-232, TTL

  • Inclination:

    Min.: -30 °

    Max.: 30 °

  • Resolution:

    0.0007 °

Description

BWH516

Digital Output Single-axis InclinometerBWH516

Product Introduction:
Designed by Bewis Sensing Technology LLC, BWH516 is a high-precision single axis inclinometer, with MEMS technology and digital output.

Technical Specifications

Measuring range: 0~±30

Measuring axis: X

Accuracy: 0.003°(Max)

Resolution: 0.0001

Working temperature: -40℃~+85℃

Frequency response: 100 Hz

Shock resistance: 2000g,0.5ms,3times/axis

MTBF: ≥30000hours/time

Insulation resistance: ≥100MΩ

Weight: 320g


If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (sales@bwsensing.com), we will send you the newest manual via email. Thank you for your understanding.

This product converts static gravity field changes into angle changes, It outputs horizontal angle values directly by digital, this product has the advantages of low cost, small température drift, simple to use, and strong résistance to external disturbances. It is an idéal option for attitude measurement in photovoltaic power (PV) , PTZ control, tower turbines monitoring and other industries.
