dual-axis inclinometer / CAN / RS-485 / RS-232
BW-VG50

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

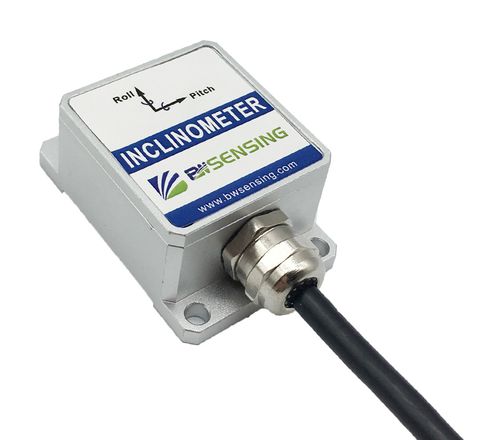

dual-axis inclinometer dual-axis inclinometer - BW-VG50
{{requestButtons}}

Characteristics

  • Number of axes:

    dual-axis

  • Output:

    CAN, RS-485, RS-232, TTL

  • Inclination:

    Max.: 90 °

    Min.: -90 °

  • Resolution:

    0.01 °

Description

BW-VG50

Ultra-low Cost Digital Dynamic Inclinometer BW-VG50

Product Introduction:

BW-VG50 dynamic inclination sensor is a low-cost inclinometer that measures the attitude parameters of the moving carrier (roll and pitch). The attitude deviation is estimated by a 6-state Kalman filter with appropriate gain and is suitable for tilt measurement in motion or vibration.

Dynamic accuracy: 3°

Static accuracy: 0.3°

Tilt margin: Pitch ± 90º, Roll ±180º

Dimension: L55 x W37 x H24 (mm)

Weight(includin package): 360g

MTBF: ≥90000 hours/time

Insulation resistance: ≥100MΩ

Waterproof level: IP67

If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (sales@bwsensing.com), we will send you the newest manual via email. Thank you for your understanding.

The BW-VG50 uses high-quality and reliable MEMS accelerometers and gyroscopes, and guarantees measurement accuracy through algorithms. At the same time, the seal design and strict process ensure that the product can accurately measure the roll angle and pitch angle of the carrier under harsh environment. Through various compensations such as nonlinear compensation, quadrature compensation, température compensation and drift compensation, the error caused by interférence can be greatly eliminated, and the product précision level can be improved. The BW-VG50 has a digital interface that can be easily integrated into the user's System.
