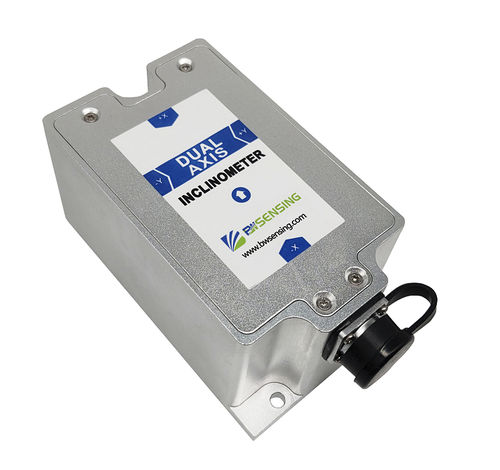

Dual-axis inclinometer BWS5000E
digitalTTLMEMS

Dual-axis inclinometer - BWS5000E - Wuxi Bewis Sensing Tecnology LLC - digital / TTL / MEMS
Dual-axis inclinometer - BWS5000E - Wuxi Bewis Sensing Tecnology LLC - digital / TTL / MEMS
Add to favorites
Compare this product
Go to the Wuxi Bewis Sensing Tecnology LLC website for more information

Characteristics

Number of axes
dual-axis
Output
digital, TTL
Technology
MEMS
Other characteristics
high-precision
Inclination

Min.: -15 °

Max.: 15 °

Resolution

0.0001 °

Description

BWS5000E is a dual-axis high-precision tilt sensor with MEMS technology and digital output launched by Bewis Sensing Technology LLC. It has a measurement range of ±15°, a maximum accuracy of 0.001°, and a temperature drift of 0.0003°/℃. Technical Specifications Accuracy: 0.001° Measuring range: ±15° Power supply DC: 10-35V Output type: RS485/232/TTL optional Wide operating temperature: -40℃~+85℃ Store temperature: -55℃~+100℃ Zero temperature drift: ±0.0003°/℃ Electromagnetic compatibility: According to GBT17626 Shock resistance: 2000g, 0.5ms, 3 times/axis Weight (g): 320 (metal plug)/350 (aviation plug) Electrostatic discharge (ESD): IEC 61000-4-2 Level IV Contact discharge 8KV, air discharge 15KV Fast transient burst immunity: IEC 61000-4-4 IV level Surge (impact) immunity: IEC 61000-4-5 Class IV
