single-axis inclinometer / RS-485 / RS-232 / TTL
Number of axes:
RS-485, RS-232, TTL
Min.: -180 °
Max.: 180 °

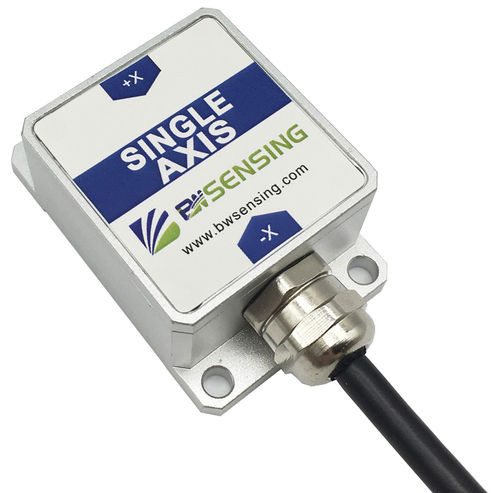

Digital Single-axis Inclinometer BWL316S
Designed by Bewis Sensing Technology LLC, BWL316S is a digital output low cost single-axis inclinometer, adopting the latest industrial level MEMS accelerometer
Measuring range: 0~±180
Measuring axis: X
Working temperature: -40℃~+85℃
Frequency response: 100 Hz
Shock resistance: 2000g,0.5ms,3times/axis
Insulation resistance: ≥100MΩ
Weight: 210g(package excluede)
If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (email@example.com), we will send you the newest manual via email. Thank you for your understanding.
This product converts static gravity field changes into angle changes, It outputs horizontal angle values directly by digital, this product has the advantages of low cost, small température drift, simple to use, and strong résistance to external disturbances. It is an idéal option for attitude measurement in photovoltaic power (PV) , PTZ control, tower turbines monitoring and other industries.
