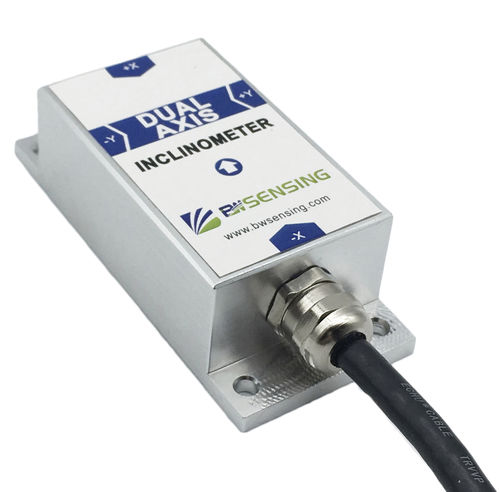

Dual-axis inclinometer BWN427

RS-485RS-232Modbus

BWN427 Modbus Output Dual-axis Inclinometer BWN427 Product Introduction： Designed by Bewis Sensing Technology LLC, BWN427 is a cost-effictive dual axis inclinometer, with MEMS technology and RS232/RS485/TTL output with Modbus. Technical Specifications Measuring range: 0~±30° Horizontal installation ONLY Measuring axis: Dual Axis Accuracy: 0.02°(Max) Resolution: 0.001° Working temperature: -40℃~+85℃ Frequency response: 100 Hz Shock resistance: 2000g,0.5ms,3times/axis MTBF: ≥30000hours/time Insulation resistance: ≥100MΩ Weight: 150g(excludes box) If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (sales@bwsensing.com), we will send you the newest manual via email. Thank you for your understanding. This product converts static gravity field changes into angle changes, It outputs horizontal angle values directly by digital, this product has the advantages of low cost, small température drift, simple to use, and strong résistance to external disturbances. It is an idéal option for attitude measurement in photovoltaic power (PV) , PTZ control, tower turbines monitoring and other industries.
