dual-axis inclinometer / RS-485 / RS-232 / TTL
Number of axes:
RS-485, RS-232, TTL
Max.: 90 °
Min.: -90 °

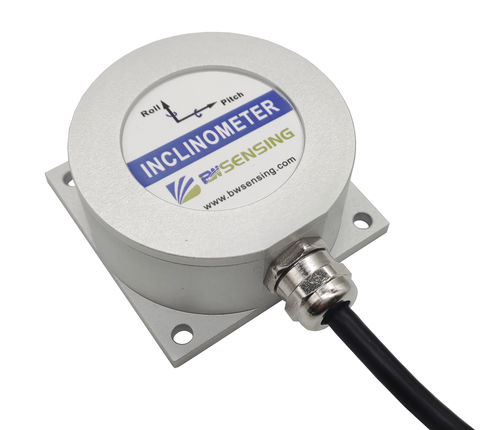

Ultra-High Precision Digital Dynamic Inclinometer BW-VG500
BW-VG500 dynamic inclination sensor is a ultra-high Precision inclinometer that measures the attitude parameters of the moving carrier (roll and pitch). The attitude deviation is estimated by a 6-state Kalman filter with appropriate gain and is suitable for tilt measurement in motion or vibration.
Dynamic accuracy: 0.1°
Static accuracy: 0.01°
Tilt margin: Pitch ± 90º, Roll ±180º
Dimension: L103.8 x W55.4 x H26 （mm）
Weight(includin package): 360g
MTBF: ≥90000 hours/time
Insulation resistance: ≥100MΩ
Waterproof level: IP67
If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (email@example.com), we will send you the newest manual via email. Thank you for your understanding.
The BW-VG500 uses high-quality and reliable MEMS accelerometers and gyroscopes, and guarantees measurement accuracy through algorithms. At the same time, the seal design and strict process ensure that the product can accurately measure the roll angle and pitch angle of the carrier under harsh environment. Through various compensations such as nonlinear compensation, quadrature compensation, température compensation and drift compensation, the error caused by interférence can be greatly eliminated, and the product précision level can be improved. The BW-VG500 has a digital interface that can be easily integrated into the user's System.
