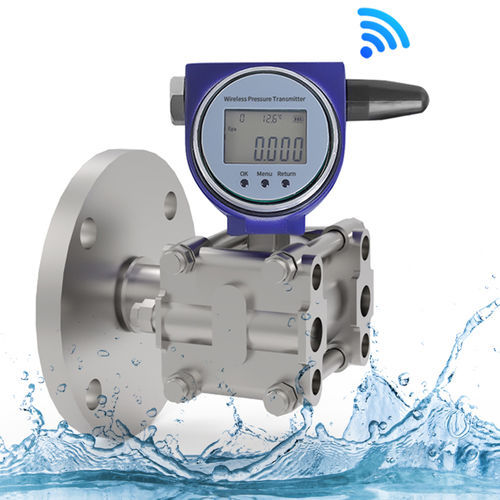

Liquid level transmitter YUCW800L-1

LoRaWANwirelessfor small tanks

The Wireless Single Flange Level Transmitter is an intelligent liquid level instrument designed specifically for atmospheric/low-pressure storage tanks. It uses a single flange isolation diaphragm to directly contact the medium and combines industrial-grade wireless transmission technology (LoRaWAN/NB-IoT) to enable continuous remote monitoring of liquid level and density. With no pressure pipes or cables required, it completely solves the installation cost and maintenance issues associated with small and medium-sized storage tanks, making it the preferred wireless upgrade for traditional liquid level gauges. Product Advantages 1. Ultra-simple installation: Single-flange direct installation, deployment completed in 30 minutes, saving 80% of labor and wiring costs. 2. Lightweight design: Compact structure (weight < 2 kg), suitable for small tanks/brackets with limited load-bearing capacity. 3. Extended Battery Life: Battery lifespan of 5–10 years* (with daily data reporting), optional solar panel for continuous power supply. 4. Strong Interference Resistance: 316L diaphragm resistant to weak corrosive media, built-in temperature compensation, suitable for operating conditions from -30°C to 150°C. 5. Seamless Cloud Integration: Data directly transmitted to IoT platform (MQTT/HTTP), supports WeChat/SMS alerts, real-time monitoring via mobile app. Core Application Areas ✅ Light Industry Storage Tanks: Liquid level monitoring for water-based solutions and weakly corrosive chemicals (such as additives and diluents). ✅ Water Treatment Systems: Unattended monitoring of clear water tanks, softened water tanks, and fire protection water tanks.
