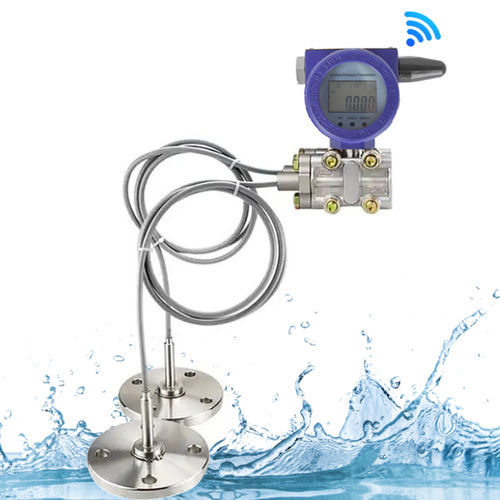

Differential level transmitter YUCW800L-2

liquidModbusLoRaWAN

The Wireless Dual Flange Level Transmitter is a revolutionary industrial liquid level/interface measurement instrument designed for harsh operating conditions. It features a dual flange isolation diaphragm structure that can be directly installed on tank flange interfaces. Combined with industrial wireless transmission technology (such as LoRaWAN/NB-IoT), it enables continuous monitoring of liquid height, density, or interface, completely eliminating the need for wiring and significantly reducing installation and maintenance costs. Product Advantages 1. Zero-wiring installation: Saves 90% on cable/conduit costs, eliminates excavation work, and reduces installation time to 1 hour. 2. Dual flange protection: 316L flange diaphragm isolates process media, resists crystallization and viscous liquids, and is suitable for high-pressure/vacuum environments (up to 100 bar). 3. Ultra-low power consumption operation: Battery life lasts 5–8 years* (with daily data reporting), supports solar power expansion. 4. Intelligent diagnostics: Built-in self-calibration function, real-time monitoring of diaphragm health status, and early warning of abnormal fluctuations. 5. Cloud integration: Data directly transmitted to SCADA/cloud platforms (compatible with Modbus, MQTT), supports remote management via mobile devices/PCs.
