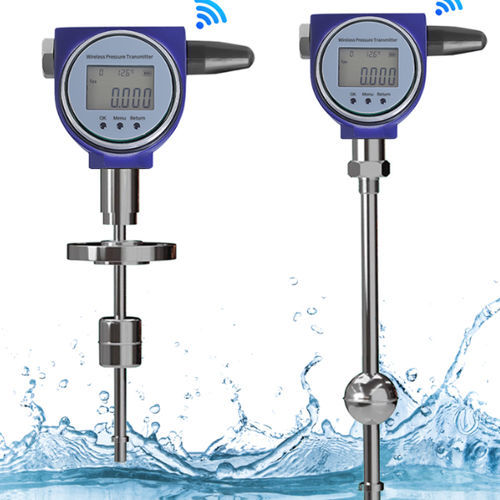

Liquids level gauge YLMW400

magneticfloatfor the chemical industry

Wireless Magnetostrictive Level Gauge utilizes magnetostrictive waveguide technology combined with industrial IoT architecture (LoRaWAN/NB-IoT/4G) to achieve high-precision simultaneous measurement of three parameters: liquid level, interface, and temperature. By disturbing the waveguide tube with a magnetic float to generate torsional stress waves, it captures liquid level changes with 0.05% FS-level accuracy, completely eliminating mechanical transmission errors. The dual innovations of battery power supply and wireless transmission provide a maintenance-free, metering-grade monitoring solution for high-end applications such as petrochemicals and LNG. Product Advantages 1. Metrology-grade accuracy: ±0.05% FS with micron-level resolution, capable of detecting liquid level fluctuations as small as 0.1mm, eliminating trade disputes. 2. Three-parameter simultaneous measurement: Single instrument simultaneously outputs liquid level + interface + temperature (accuracy ±0.5°C), reducing overall costs by 40%. 3. Fully wireless and maintenance-free: Battery life of over 8 years (with 4 daily reports), IP68 protection, no calibration required for life (temperature drift <0.001%/°C). 4. Full adaptability from deep cold to high temperature: Operates in a wide temperature range of -196°C to 200°C (deep cold type reaches -269°C), resistant to condensation and boiling disturbances. 5. Intelligent diagnostic cloud platform: Magnetic float adhesion warning, density anomaly analysis, leakage trend estimation, reducing fault downtime by 90%.
