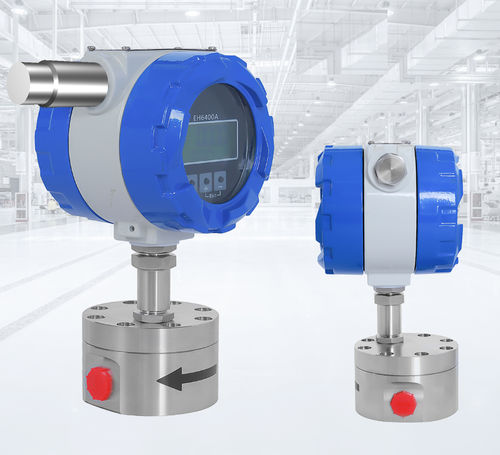

Gear flow meter

volumefor oilfor fuel

Overview
The YUNYI LoRa wireless elliptical (circular) gear flowmeter is a mechanical volumetric meter designed for reliable metering of high‑viscosity fluids. It combines an all‑metal gear set with a non‑magnetic sensor, self‑lubricating nano‑coating and industrial IoT wireless transmission (LoRaWAN / NB‑IoT / 4G) in a battery‑powered architecture. The design targets trade handover and process control where pulsation, cable routing and power availability challenge conventional sensors.

Product Advantages

• Trade‑grade accuracy: ±0.5% reading for viscosities >100 cP, improving on typical turbine meter performance for heavy media.
• Wireless intrinsic safety: explosion‑proof wireless module (Ex d IIC T6) enabling cable‑free installations in hazardous areas.
• High‑viscosity capability: nano‑ceramic / nano‑coating on gear surfaces resists adhesion across 0.1–100,000 cP, reducing gear stall risk.
• Intelligent self‑diagnosis: real‑time monitoring of gear wear and foreign object intrusion with automatic calibration when deviation >0.2%.
• Full‑chain traceability: blockchain‑encrypted data storage (ISO 8000 compliance) and one‑click generation of flow certificates for audits.

Core Application Areas

• Petrochemical & energy: trade and delivery measurement of crude oil, fuel oil and asphalt (where applicable, compliant with API 4.2 / ISO 2714).
• Food & pharmaceutical: batch dosing and quantitative control of high‑viscosity ingredients such as chocolate, syrups and glycerin (sanitary 316L / EC1935 options available).
• Chemical manufacturing: high‑precision process blending of resins, adhesives and solvents (Hastelloy gear options for corrosive media).
• Agricultural oils: metering vegetable oils, pesticide concentrates and biodiesel.
• Mobile tank trucks: wireless loading/unloading measurement with synchronous GPS trajectory and flow data upload.

Operational benefits / Industry pain points addressed

• Reduces accuracy drift caused by pulsation in viscous fluids.
• Eliminates need for vulnerable outdoor wiring by using wireless transmission.
• Provides audit‑ready traceability to reduce trade disputes.
• Minimizes downtime risk from gear jamming through anti‑adhesion coatings and wear/foreign object detection.

Technical specifications

• Measurement principle: mechanical volumetric (elliptical / circular gear meshing).
• Wireless transmission: LoRaWAN, NB‑IoT, 4G (industrial IoT integration).
• Accuracy: ±0.5% reading (for viscosity >100 cP).
• Automatic calibration: self‑calibration when deviation >0.2% (intelligent diagnostics).
• Viscosity range: approx. 0.1 cP to 100,000 cP.
• Materials / options: all‑metal gear set; sanitary 316L / EC1935 and Hastelloy options available.
• Coating: self‑lubricating nano‑ceramic / nano‑coating to resist buildup.
• Explosion‑proof wireless module: certified Ex d IIC T6 (intrinsic safety option).
• Power architecture: battery‑powered wireless design for installations without external power cabling.
• Diagnostics: real‑time gear wear and foreign object intrusion monitoring; intelligent alerts.
• Data integrity & traceability: blockchain‑encrypted storage compatible with ISO 8000; one‑click flow certificate generation.
• Typical use cases: trade handover metering, process control, mobile tank truck loading/unloading with GPS and flow logging.
• Compliance references: API 4.2 / ISO 2714 where applicable.
