Liquids level gauge CAT1

radar

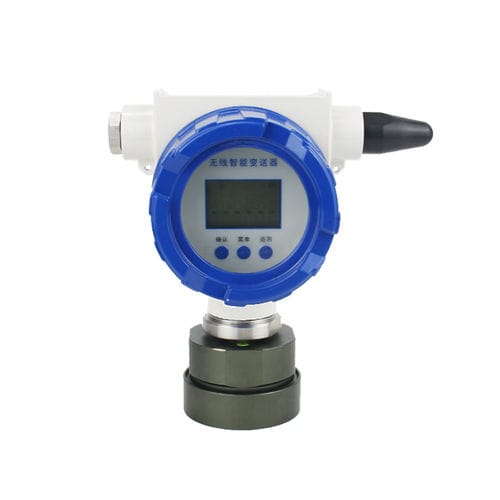

The CAT1 Wireless Radar Level Gauge is an intelligent level measurement instrument integrating 26GHz high-frequency radar technology with 4G CAT1 communication capabilities. Utilizing the Frequency Modulated Continuous Wave (FMCW) principle, it achieves ±3mm measurement accuracy while communicating directly with cloud platforms via 4G networks without requiring gateway conversion. Featuring an IP67 protection rating and an extended battery life of up to 5 years, this device is specifically designed for distributed tank level monitoring scenarios lacking mains power supply yet requiring high-precision measurement. It serves as the ideal wireless upgrade solution for traditional wired radar level gauges. Product Advantages 1. Direct 4G Cloud Connectivity: Eliminates the need for gateways by uploading data directly via 4G networks, reducing intermediate steps and enhancing system reliability. 2. Millimeter-Wave Precision Measurement: Utilizes 26GHz high-frequency measurement with a narrow beam angle (3°) for strong anti-interference capabilities and measurement accuracy of ±3mm. 3. Ultra-Long Battery Life: Low-power design with a 19000mAh lithium battery supports 3-5 years of continuous operation, delivering true maintenance-free performance. 4. Simple Installation & Maintenance: No wiring required. Single-person installation in 30 minutes. Supports remote diagnostics and parameter configuration. 5. Multi-Protocol Support: Compatible with MQTT/HTTP/HTTPS protocols. Integrates with diverse cloud platforms and monitoring systems. 6. Full-Condition Adaptability: PTFE-sealed antenna ensures corrosion and high-temperature resistance, suitable for complex environments.
